VibraTECH Series Seismic Vibration Isolators

VibraTECH Series Seismic Vibration Isolators

Place the mounts regarding the coordination of each mount. Place the equipment locating the load of the machinery on the top housing. Give extreme caution not to overload the springs, distribute the load evenly on all mounts.

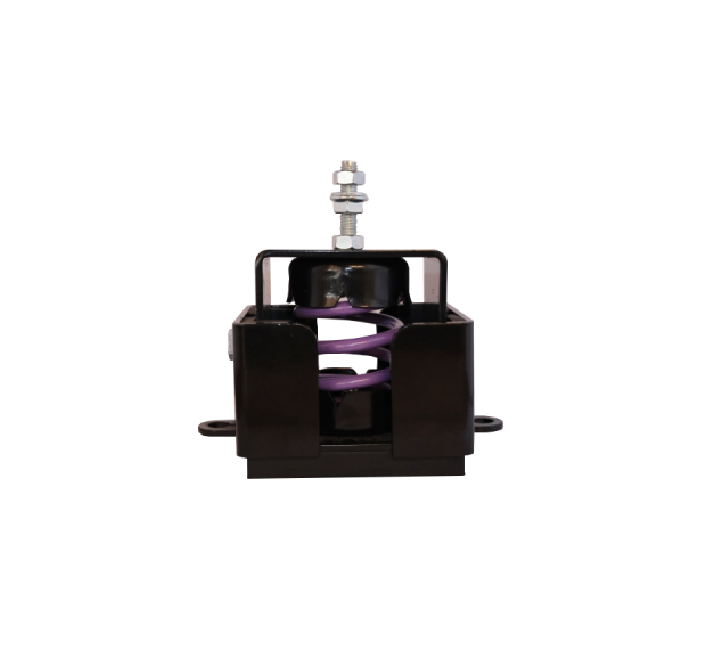

VibraTECH-Mini Seismic Vibration Isolator

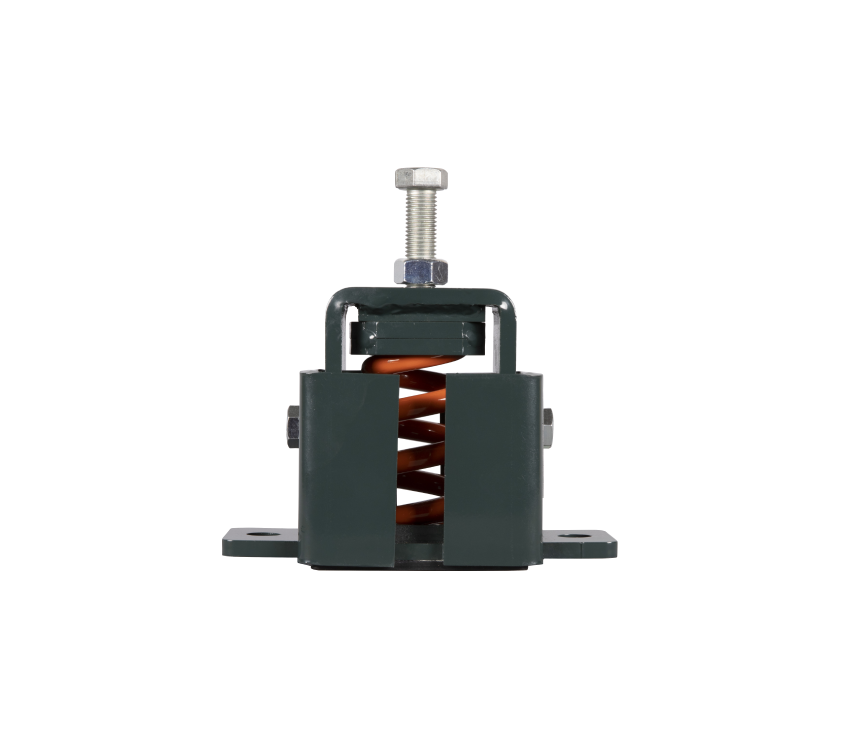

VibraTECH-1 Seismic Vibration Isolator

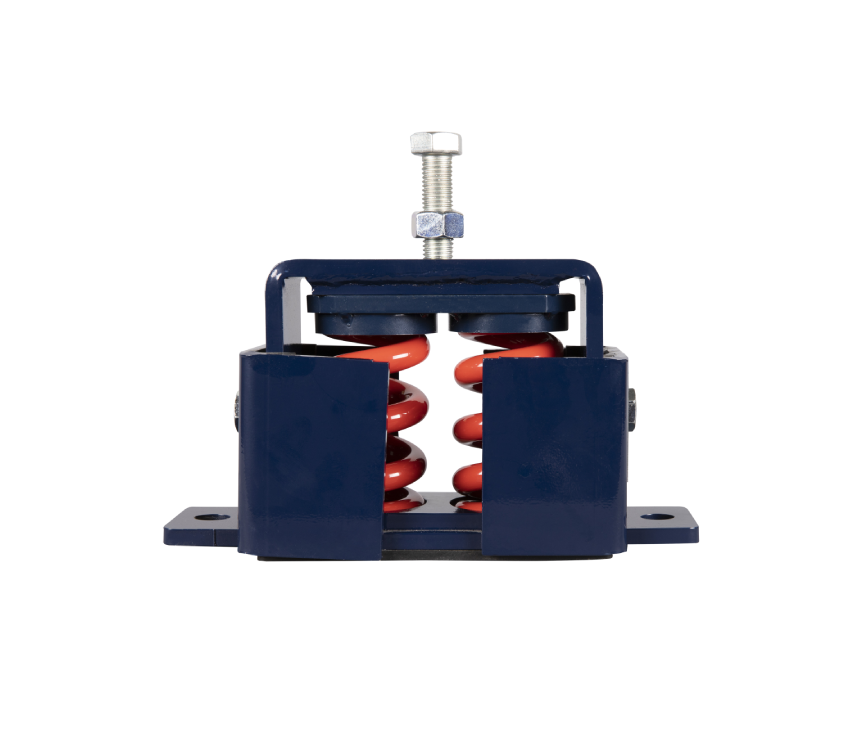

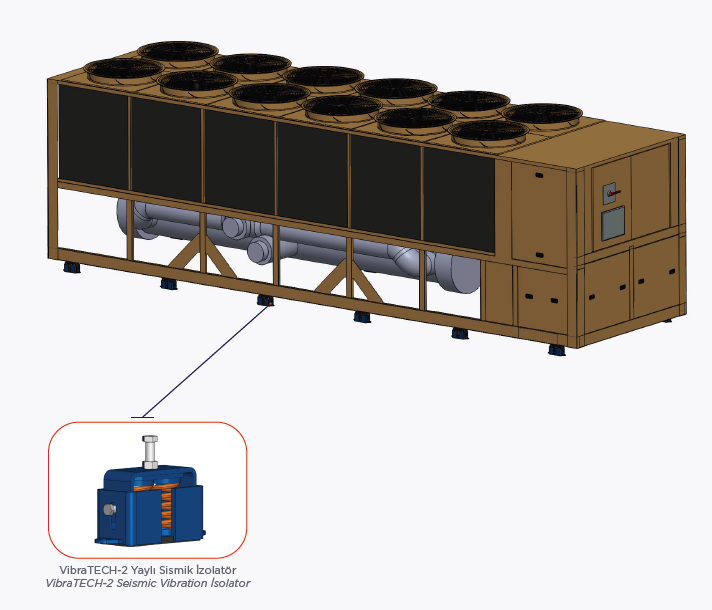

VibraTECH-2 Seismic Vibration Isolator

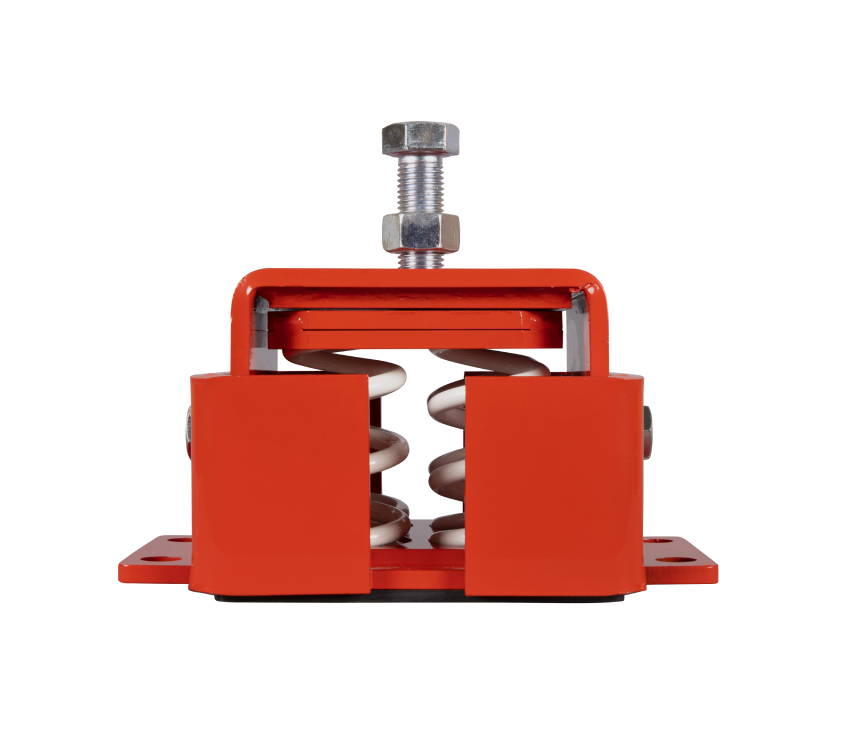

VibraTECH-4 Seismic Vibration Isolator

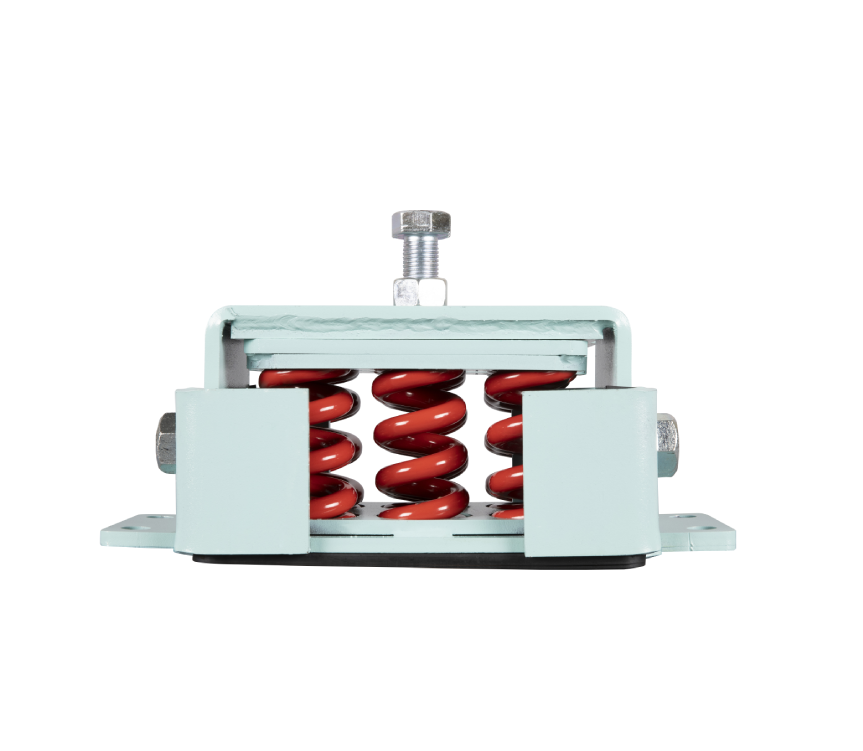

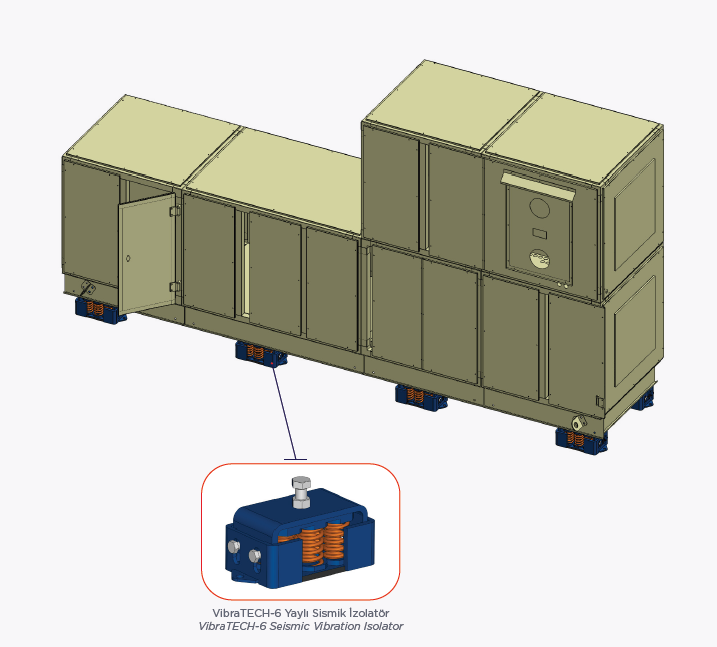

VibraTECH-6 Seismic Vibration Isolator

File Name Subject Link
VibraTECH MINI Technical Drawing
VibraTECH MINI Autocad
VibraTECH MINI Solid-3D
VibraTECH MINI IGS-3D
VibraTECH-1 Technical Drawing
VibraTECH-1 Autocad
VibraTECH-1 Solid-3D
VibraTECH-1 IGS-3D
VibraTECH-2 Technical Drawing
VibraTECH-2 Autocad
VibraTECH-2 Solid-3D
VibraTECH-2 IGS-3D
VibraTECH-4 Technical Drawing
VibraTECH-4 Autocad
VibraTECH-4 Solid-3D
VibraTECH-4 IGS-3D
VibraTECH-6 Technical Drawing
VibraTECH-6 Autocad
VibraTECH-6 Solid-3D
VibraTECH-6 IGS-3D
  1. Place the mounts regarding the coordination of each mount.
  2. Place the equipment locating the load of the machinery on the top housing.
  3. Give extreme caution not to overload the springs, distribute the load evenly on all mounts.
  4. By the help of leveling screw level the equipment until reaching the operating height.
  5. Tighten traction screws on sides correctly.
  6. In case of replacing or moving the mounts, move the equipment and remove the weigth on the mounts.



• Material : Steel

• Coating : Electrostatic Powder Coating

• Natural Freq. : 3 ~ 4 Hz

• Approval : TÜV-ANSI ASHRAE 171

• The steel housing prevents the equipment from moving.

• The rubberized base provides additional insulation for the medium and high frequencies transmitted by the springs.



VibraTECH-MINI

Kod
Code		 Yük
Load
(Kgf)		 Çökme
Deflection
(mm)		 k
(kg/mm)		 Renk Kodu
Color Code		 A
(mm)		 B
(mm)		 C
(mm)		 ØD
(mm)		 ØF
(mm)
4400050025 25 22 1,14 Siyah / Black 140 73 95 11 M.8
4400050050 50 2,27 Mor / Purple
4400050075 75 3,41 Gri / Grey
4400050100 100 4,55 Beyaz / White
4400050150 150 6,82 Siyah / Black
4400050250 250 11,36 Kırmızı / Red



VibraTECH-1

Kod
Code		 Yük
Load
(Kgf)		 Çökme Deflection
(mm)		 k
(kg/mm)		 Renk Kodu
Color Code		 A
(mm)		 B
(mm)		 C
(mm)		 ØD
(mm)		 ØF
(mm)
4400500150 150 22 6,82 Kırmızı / Red 192 93 137 17 M.16
4400500250 250 11,36 Sarı / Yellow
4400050305 305 13,86 Beyaz / White
4400050405 405 18,41 Yeşil / Green
4400050540 540 24,55 Gri / Grey
4400050803 803 36,50 Turuncu / Orange
4400051040 1040 47,27 Sarı / Yellow
4400051250 1250 56,82 Kırmızı / Red



VibraTECH-2

Kod
Code		 Yük
Load (Kgf)		 Çökme Deflection (mm) k
(kg/mm)		 Renk Kodu
Color Code		 A
(mm)		 B
(mm)		 C
(mm)		 ØD
(mm)		 ØF
(mm)
4400200610 610 22 27,72 Beyaz / White 261 95 137 17 M.16
4400200810 810 36,81 Yeşil / Green
4400201080 1080 49,09 Gri / Grey
4400201606 1606 73,00 Turuncu / Orange
4400202080 2080 94,55 Sarı / Yellow
4400202500 2500 113,64 Kırmızı / Red



VibraTECH-4

Kod
Code		 Yük
Load (Kgf)		 Çökme Deflection (mm) k
(kg/mm)		 Renk Kodu
Color Code		 A
(mm)		 B
(mm)		 C
(mm)		 ØD
(mm)		 E
(mm)		 ØF
(mm)
4400401220 1220 22 55,45 Beyaz / White 261 166 137 17 76 M.22
4400401620 1620 73,64 Yeşil / Green
4400402160 2160 98,18 Gri / Grey
4400403212 3212 146,00 Turuncu / Orange
4400404160 4160 189,09 Sarı / Yellow
4400405000 5000 227,27 Kırmızı / Red



VibraTECH-6

Kod
Code		 Yük
Load
(Kgf)		 Çökme Deflection (mm) k
(kg/mm)		 Renk Kodu
Color Code		 A
(mm)		 B
(mm)		 C
(mm)		 ØD
(mm)		 E
(mm)		 ØF
(mm)
4400601830 1830 22 83,18 Beyaz / White 365 166 137 17 76 M.22
4400602430 2430 110,45 Yeşil / Green
4400603240 3240 147,27 Gri / Grey
4400604818 4818 219,00 Turuncu / Orange
4400606240 6240 283,64 Sarı / Yellow
4400607500 7500 340,91 Kırmızı / Red
