ShockShield Polyurethane Impact Sound Insulation Mattress
High impact sound insulation and inter-storey airborne sound insulation.

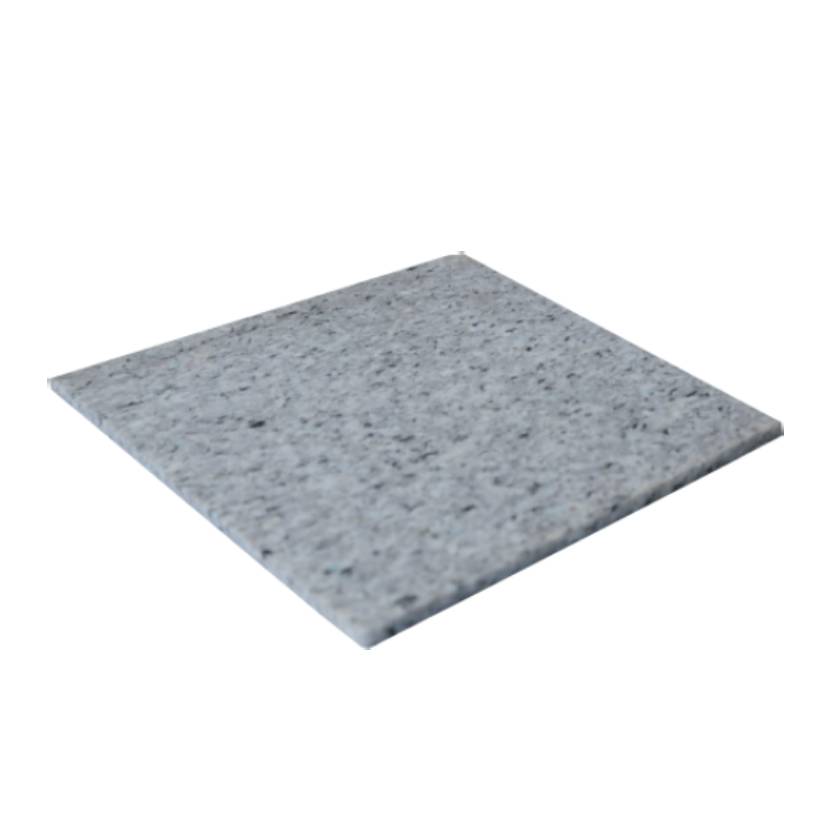

ShockShield-4
ShockShield-5

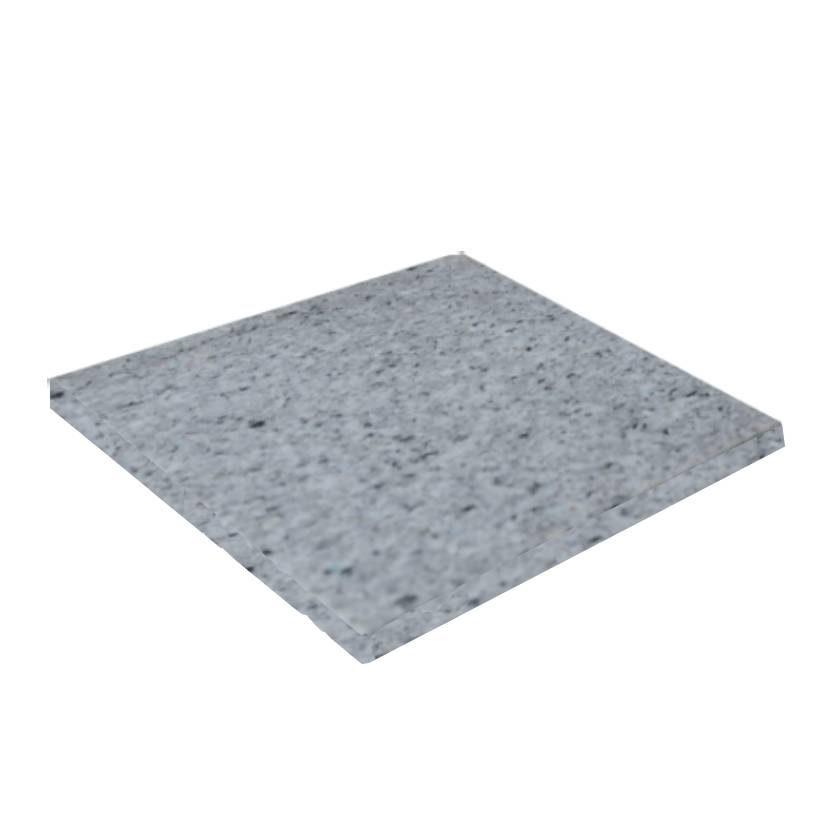

ShockShield-6
ShockShield-8

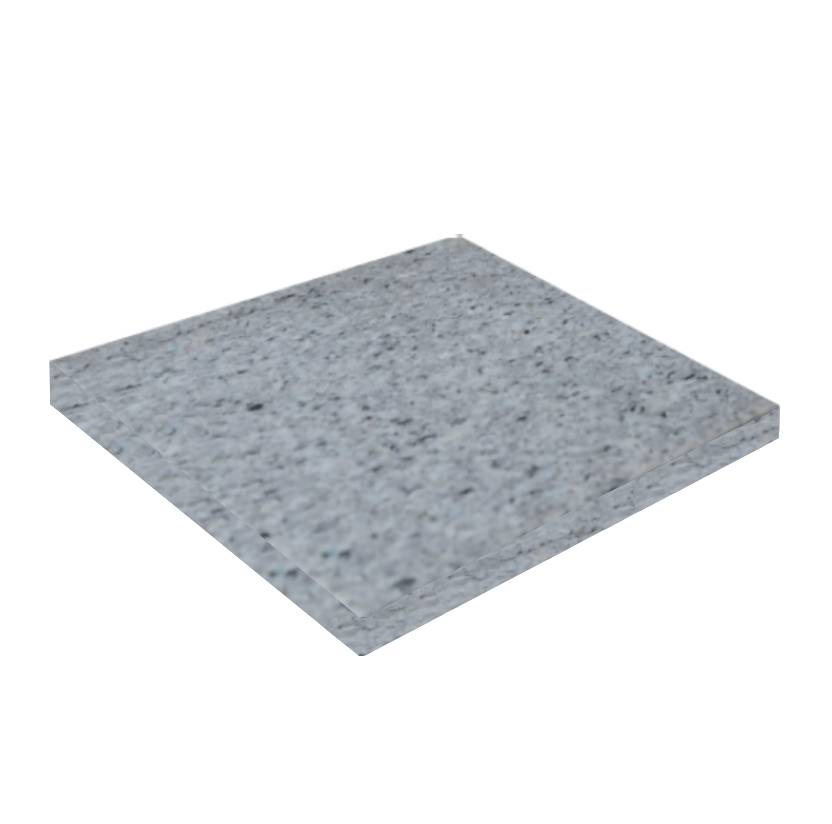

ShockShield-10

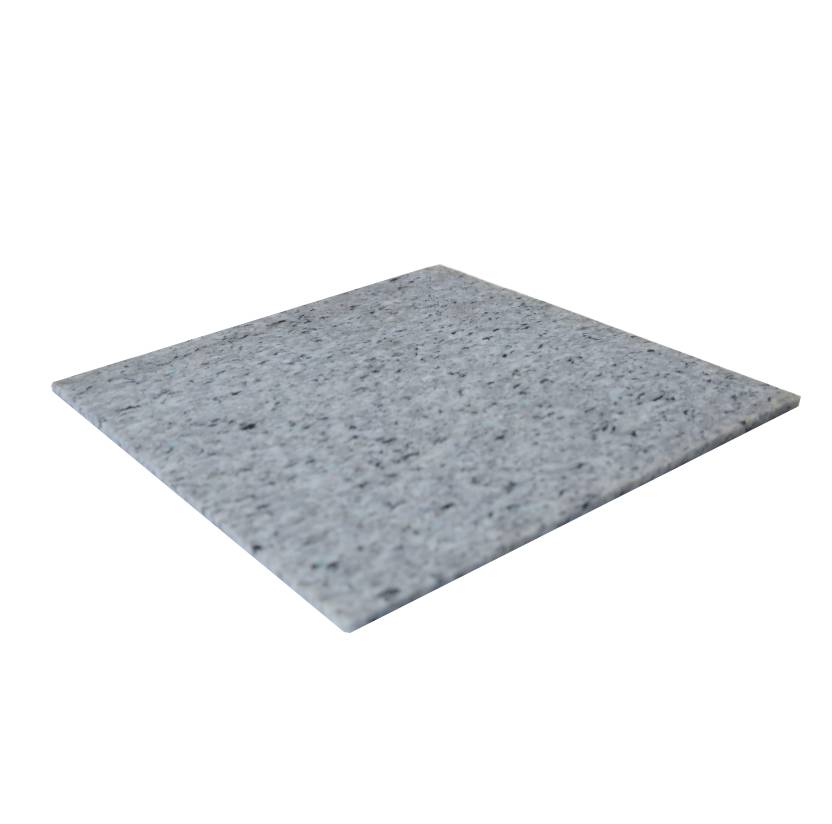

ShockShield-84
ShockShield-178

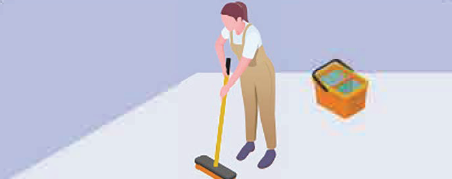

• Clean the surface.

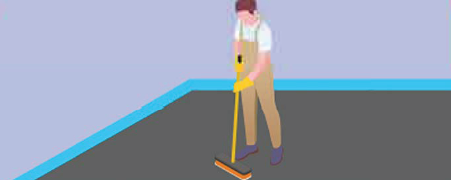

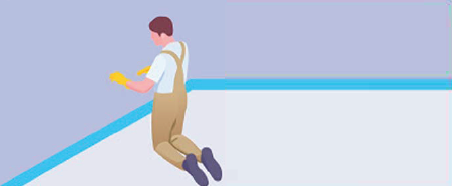

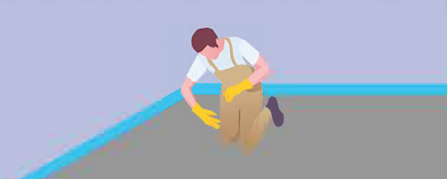

• Attach Acoustic Tape to the wall edges.
• Lay the mattress on the floor.
• Tape the joints with PVC tape.

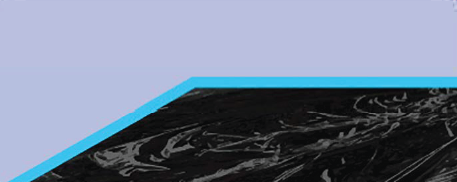

• Spread PE film on the mattress.
• Joining points Seal with PVC tape.
• Pour the alum.

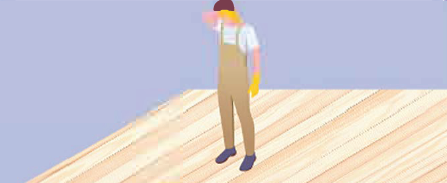

• Cover the floor.
• Does not form mould, fungi and bacteria
• Long service life.
• Provides high impact sound insulation performance.
• It contributes to airborne sound insulation between floors.
• Surface options:
- 4mm, 5mm, 6mm, 8mm, 8mm, 10mm- Flat surface
- 8/4 mm, 17/8 mm - Viol surface
| Physical Dimensions | Packaging | |||||||||
| PRODUCT | Thichness | Width (m) x Length (m) |
Unit Volume Mass (kg/m3) |
Unit Area Mass (kg/m2) | Roll Size (kg/m2) | (») Roll/ Package Mass (kg) | Package Dimensions (cm) | Roll Number (1 Pallet) |
Pellet Dimensions (m2) | (») Package Mass (kg) |
| SHOCKSHIELD-4 | 4 mm* | 0,75 x 28 | 140 | 0,56 | 21 | 11,8 | 80x120x175 | 12 | 252 | 141 |
| SHOCKSHIELD-5 | 5 mm* | 0,75 x 23 | 140 | 0,7 | 17,25 | 12,1 | 80x120x175 | 12 | 207 | 145 |
| SHOCKSHIELD-6 | 6 mm* | 0,75 x 19 | 140 | 0,84 | 14,25 | 12 | 80x120x175 | 12 | 171 | 144 |
| SHOCKSHIELD-8 | 8 mm* | 0,75 x 14 | 140 | 1,12 | 10,5 | 11,8 | 80x120x175 | 12 | 126 | 141 |
| SHOCKSHIELD-10 | 10 mm** | 0,75 x 11 | 140 | 1,4 | 8,25 | 11,6 | 80x120x175 | 12 | 99 | 139 |
| SHOCKSHIELD-84 | 8/4 mm** | 0,78 x 2 | 180 | 1,08 | 15,6 | 16,8 | 80x200x172 | 26 | 405,6 | 438 |
| SHOCKSHIELD-178 | 17/8 mm** | 0,78 x 2 | 180 | 2,25 | 15,6 | 35,1 | 80x200x178 | 13 | 202,8 | 456 |
| Mechanical Properties | Acoustic Characteristics | |||||||||||||||||||
| PRODUCT | Pressure Creep (10 years) | Fire Class | Coefficient of Thermal Conductivity (W/mK) | Dynamic Hardness (MN/m3) | Impact Sound Insulation (ΔLw) | Air Born Sound Insulation (ΔRw) (dB) | ||||||||||||||
| TS EN 1606 | TS EN ISO 13501-1 | TS EN 12667 | TS EN ISO 29052-1 | TS EN ISO 10140-3 | TS EN ISO 12354-1 | |||||||||||||||
| TS EN ISO 717-2 | ||||||||||||||||||||
| 130 kg/m2 | 182 kg/m2 | |||||||||||||||||||
| SHOCKSHIELD-4 | 7,20 % | E | 0,0428 | £ 67 | 21,4 (-11) | 22,4 (-11) | ≤ 6 | |||||||||||||
| SHOCKSHIELD-5 | 7,20 % | E | 0,0428 | £ 64 | 21,9 (-13)* | 22,9 (-12)* | ≤ 6,5 | |||||||||||||
| SHOCKSHIELD-6 | 7,20 % | E | 0,0428 | £ 61 | 22 (-13)* | 23,3 (-13)* | ≤ 6,8 | |||||||||||||
| SHOCKSHIELD-8 | 7,20 % | E | 0,0428 | £ 58 | 22,6 (-13)* | 24 (-13)* | ≤ 7,3 | |||||||||||||
| SHOCKSHIELD-10 | 7,20 % | E | 0,0428 | £ 53 | 23,2 (-12) | 25,2 (-14) | ≤ 8 | |||||||||||||
| SHOCKSHIELD-84 | 7,20 % | E | 0,0428 | £ 57 | 22,9 (-13)* | 24,4 (-14) | ≤ 7,8 | |||||||||||||
| SHOCKSHIELD-178 | 7,20 % | E | 0,0428 | £ 22 | 28,7 (-13)* | 30,3 (-14) | ≤ 11,5 | |||||||||||||
• Ensure that the application surface is clean and smooth.
• Acoustic mattress is cut and placed according to the dimensions of the area.
• It is fixed to the surface with suitable adhesives.
• It is completed by covering with an additional material when necessary.
