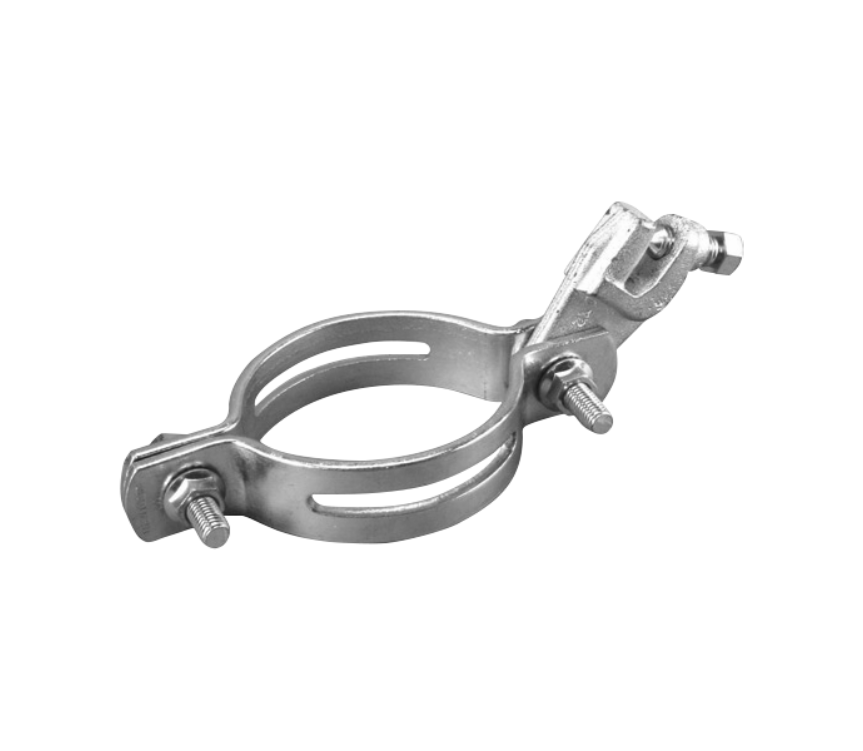

Universal Sway Brace
The UL Listed and FM approved Universal Seismic Hanger is the latest innovation to simplify installation during conduit hanging for seismic or other catastrophic events.
• Place the Standard Universal Sway Brace around the pipe by loosening the bolts and sliding around the pipe. Insert bolt through hole, mount nut and tighten.
• Position brace and then tighten the nuts until securely locked in place.

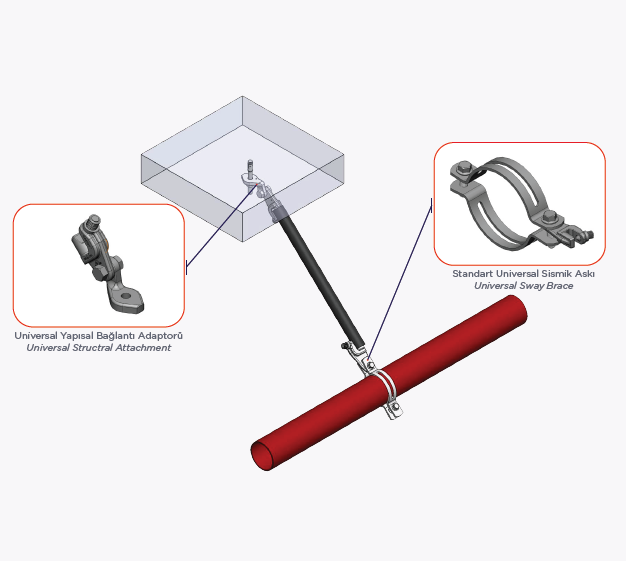

• Attach the Standard Universal Sway Brace to pre-mounted brace pipe and tighten bolt on brace pipe attachment until bolt head shears off.
Tighten top nut first.
Tighten set screw until head snaps of.
• Material : Steel
• Coating : Zinc Plated
• Approval : UL Listed and FM Approved
• Use for both lateral and longitudinal sway brace applications
• Unique slotted holes provide for easy slip-on installation eliminating loose hardware
• Snap-off bolt head helps enable easy installation and inspection of seismic sway braces
• Works with 1” through 2” brace pipes and 1/4” angle iron braces to reduce inventory
• Meets NFPA®-13 requirements for seismic sway bracing
|

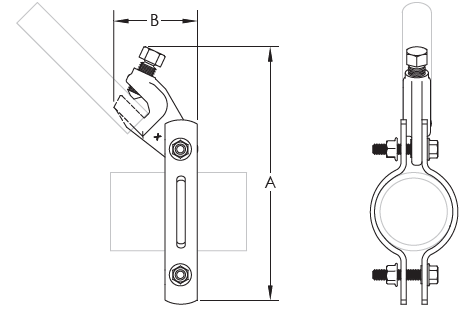

Code |
Pipe Size |
A (mm) |
B (mm) |
C (mm) |
D(mm) |
| 3100404385 | 1" | 90.5 | 33.3 | 15.88 | 127.00 |
| 3100404386 | 1 1/4" | 90.5 | 33.3 | 17.46 | 139.70 |
| 3100404387 | 1 1/2" | 90.5 | 33.3 | 19.05 | 136.53 |
| 3100404388 | 2" | 90.5 | 33.3 | 20.64 | 152.40 |
| 3100404389 | 2 1/2" | 90.5 | 33.3 | 23.81 | 171.45 |
| 3100404390 | 3" | 90.5 | 33.3 | 25.40 | 187.33 |
| 3100404391 | 4" | 90.5 | 33.3 | 17.46 | 215.90 |
| 3100404392 | 5" | 90.5 | 33.3 | 25.40 | 269.88 |
| 3100404393 | 6" | 90.5 | 33.3 | 28.58 | 276.23 |
| 3100404394 | 8" | 90.5 | 33.3 | 31.75 | 330.20 |
| 3100404395 | 10" | 90.5 | 33.3 | 25.40 | 385.76 |
UL Loads
| Code | Pipe Size | Lateral | Longitudinal | ||
| Sch 10 Service Pipe | Sch 40 Service Pipe | Sch 10 Service Pipe | Sch 40 Service Pipe | ||
| 3100404385 | 1" | 8006 N | 8006 N | 4448 N | 4448 N |
| 3100404386 | 11/4" | 8006 N | 8006 N | 3024 N | 3024 N |
| 3100404387 | 11/2" | 8006 N | 8006 N | 4448 N | 4448 N |
UL Loads
Code |
Pipe Size |
Lateral | Longitudinal | ||
| Sch 10 Service Pipe | Sch 40 Service Pipe | Sch 10 Service Pipe | Sch 40 Service Pipe | ||
| 3100404388 | 2" | 8006 N | 8006 N | N/A | N/A |
| 3100404389 | 21/2" | 8006 N | 8006 N | 5782 N | 5782 N |
| 3100404390 | 3" | 8006 N | 8006 N | 5782 N | 5782 N |
| 3100404391 | 4" | 8006 N | 8006 N | 6227 N | 6227 N |
| 3100404392 | 5" | 8006 N | 8006 N | 7561 N | 7561 N |
| 3100404393 | 6" | 8006 N | 8006 N | 7561 N | 7561 N |
| 3100404394 | 8" | 8006 N | 8006 N | 7561 N | 7561 N |
| 3100404395 | 10" | 8451 N | 8451 N | 8451 N | 8451 N |
FM Loads (Lightwall, Sch 10 & Sch 40)
Code |
Pipe Size |
Horizontal Capacity per Installation Angle From Vertical | |||||||
| Lateral | Longitudinal | ||||||||
| 30°-44° | 45°-59° | 60° 74° | 75° -90° | 30°-44° | 45°-59° | 60° 74° | 75° - 90° | ||
| 3100404385 | 1" | 6620 N | 9380 N | 11470 N | 12890 N | 5730 N | 5510 N | 5600 N | 6220 N |
| 3100404386 | 11/4" | 6130 N | 8710 N | 10670 N | 11960 N | 5730 N | 5510 N | 5600 N | 6220 N |
| 3100404387 | 11/2" | 6130 N | 8710 N | 10670 N | 11961 N | 5330 N | 8270 N | 9690 N | 10000 N |
| 3100404388 | 2" | 6130 N | 8711 N | 10670 N | 11962 N | 5330 N | 8270 N | 9690 N | 10000 N |
| 3100404389 | 2 1/2" | 6400 N | 9020 N | 11070 N | 12410 N | 5870 N | 8090 N | 9740 N | 11120 N |
| 3100404390 | 3" | 6180 N | 8760 N | 10760 N | 12050 N | 5780 N | 7960 N | 9740 N | 11120 N |
| 3100404391 | 4" | 6180 N | 8761 N | 10760 N | 12050 N | 5780 N | 7960 N | 9740 N | 11120 N |
| 3100404392 | 5" | 6180 N | 8762 N | 10760 N | 12050 N | 5780 N | 7960 N | 9740 N | 11120 N |
| 3100404393 | 6" | 6490 N | 9160 N | 11200 N | 12580 N | 6270 N | 8670 N | 10450 N | 11920 N |
FM Loads (0.188" Wall and Sch 40 Servİce Pipes)
Code |
Pipe Size |
Horizontal Capacity per Installation Angle From Vertical | |||||||
| Lateral | Longitudinal | ||||||||
| 30°-44° | 45°-59° | 60° 74° | 75° - 90° | 30°-44° | 45°-59° | 60° 74° | 75° - 90° | ||
| 3100404394 | 8" | 5910 N | 8360 N | 10230 N | 11470 N | 6220 N | 8540 N | 10450 N | 11740 N |
| 3100404395 | 10" | 5910 N | 8360 N | 10230 N | 11470 N | 6220 N | 8540 N | 10450 N | ,11740 N |
