U Lateral Bracing Clamp - DBE

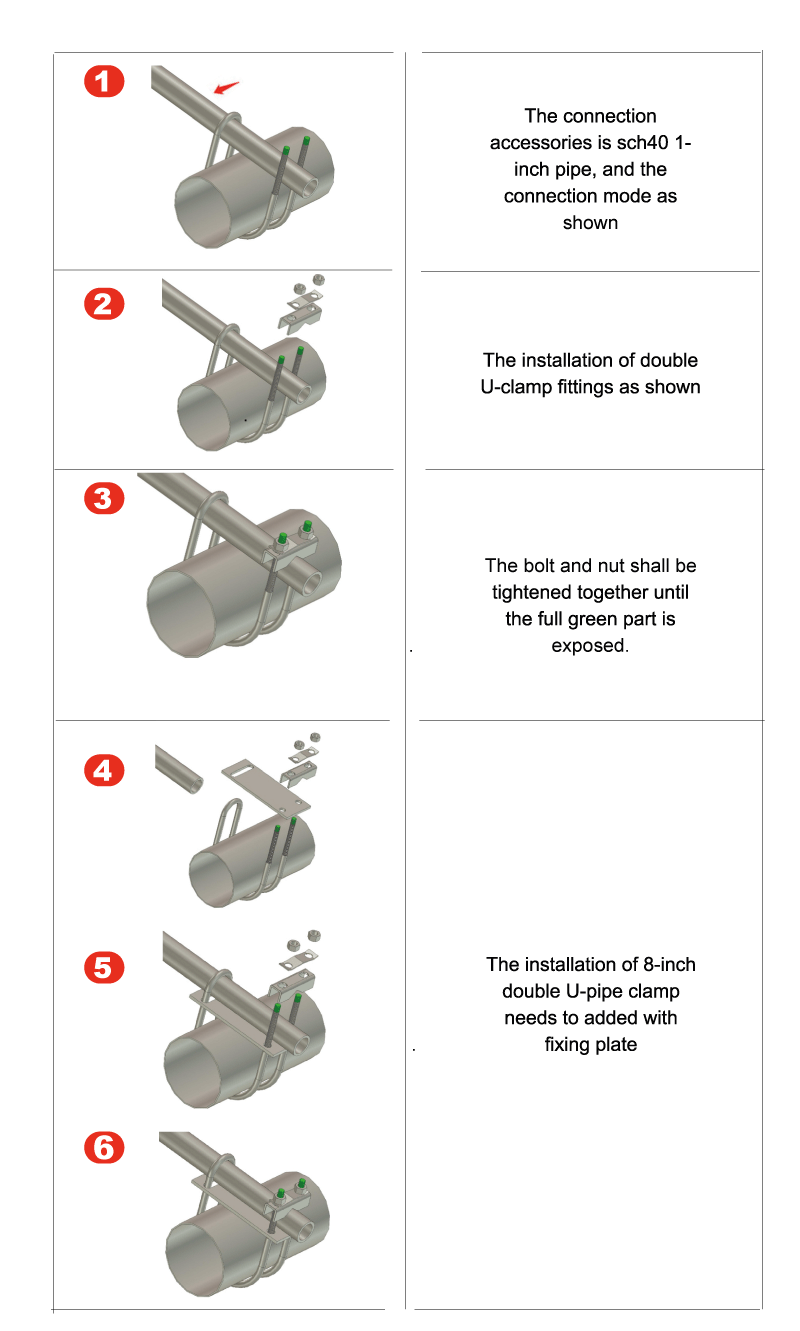

• Place over the pipe to be braced, adjust brace angle, and insert bracing pipe through opening leaving a minimum of 1" (25.4) extending from attachment.

• Brace pipe can be installed on top or bottom of pipe to be braced but must be a minimum of 6" (152.4) away from a pipe joint.

• Tighten nuts down evenly until 30–35 NM to make all green marking lines visible.

• Material : Steel
• Coating : Zinc Plated
• Approval : FM Approved

•  Brace Pipe : 1” (25), Sch 10, Sch 40, GB/T 3091, JIS G3454
•  Size : Pipe size 2"(50) thru 8"(200)

• It is designed to protect piping systems against sway and seismic effects.
• When used together with a structural attachment fitting and combined with a bracing pipe element, it forms a complete sway brace
assembly.
• It must be installed in accordance with NFPA 13 and the installation instructions.

FM Load

Code	Pipe Size inch                  mm		Horizontal Load Installation Angle 30° - 44° lbs.                     kN			Horizontal Load Installation Angle 45° - 59° lbs.                      kN		Weight - wt.each  lb.                kg
37000DBE20	2"	(50)	590	2,62		840	8,80	0,92	0,42
37000DBE25	2 1/2"	(65)	710	3,15		1010	3,73	1,01	0,46
37000DBE30	3"	(80)	540	2,40		770	4,49	1,08	0,49
37000DBE40	4"	(100)	540	2,40		770	3,42	1,21	0,55
37000DBE60	6"	(150)	270	1,20		390	1,73	1,52	0,69
37000DBE80	8"	(200)	210	0,93		290	1,28	1,81	0,82
