Seismic Rope Brackets-SBN

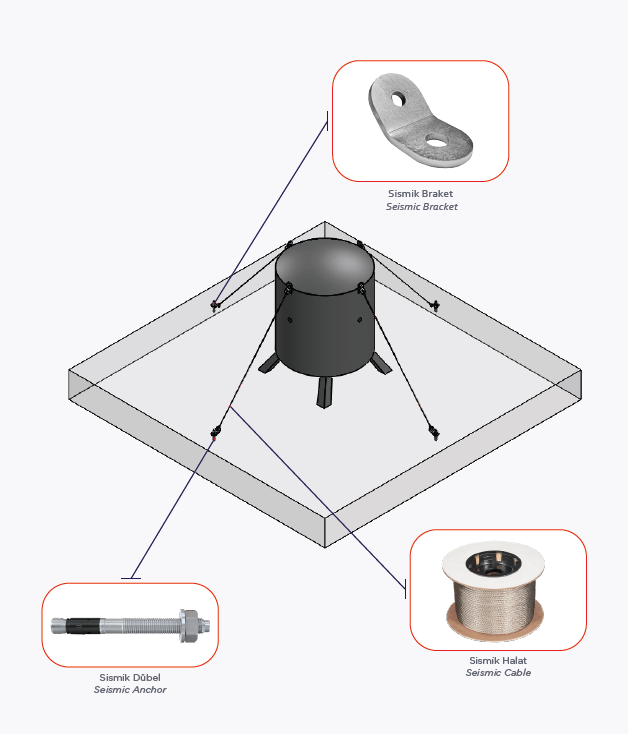

Used to fix seismic cables to structure and component.

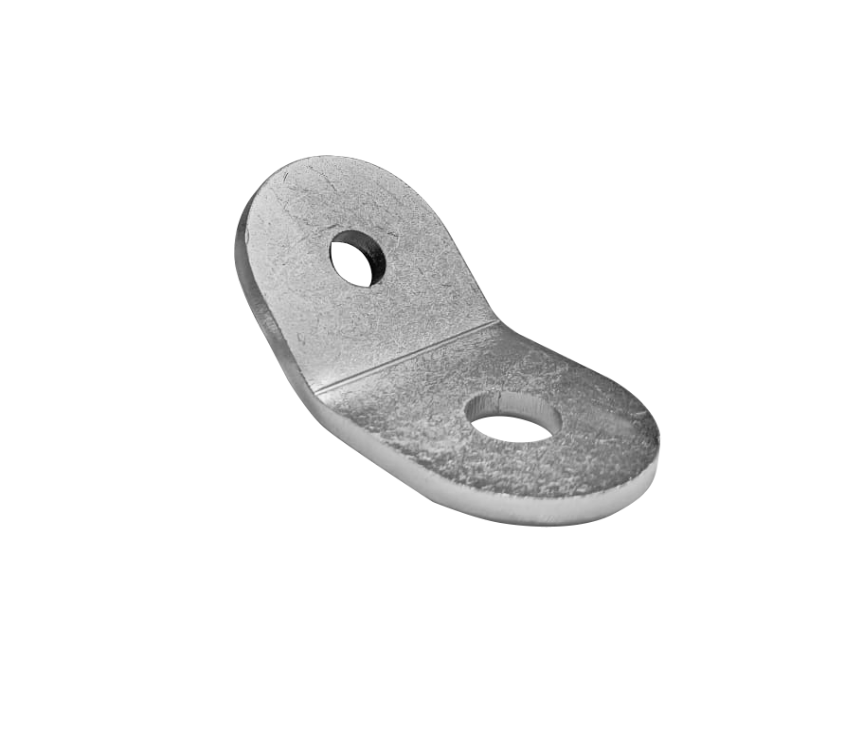

SBN

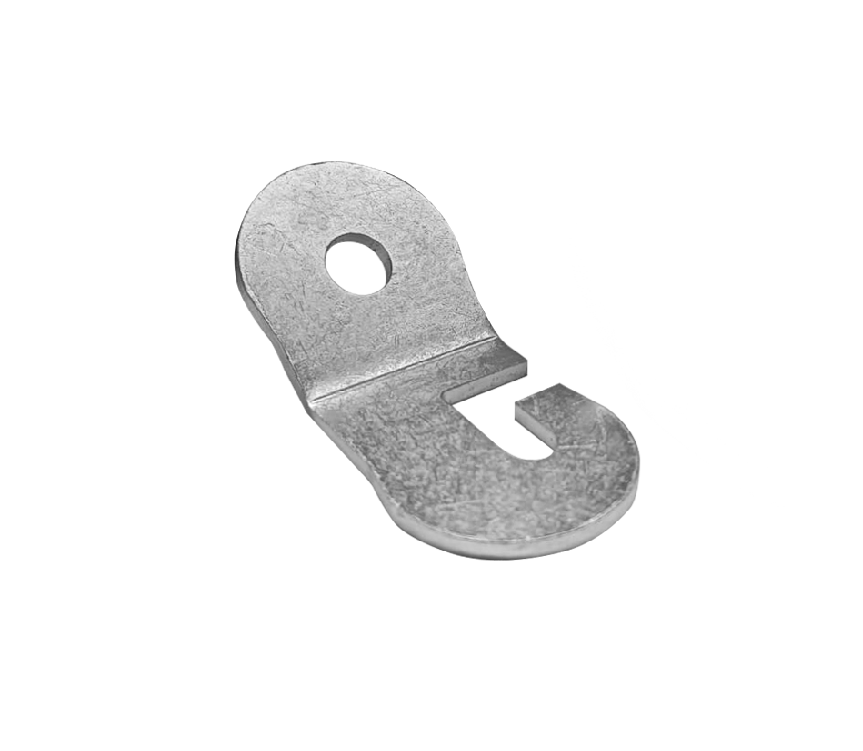

SBR

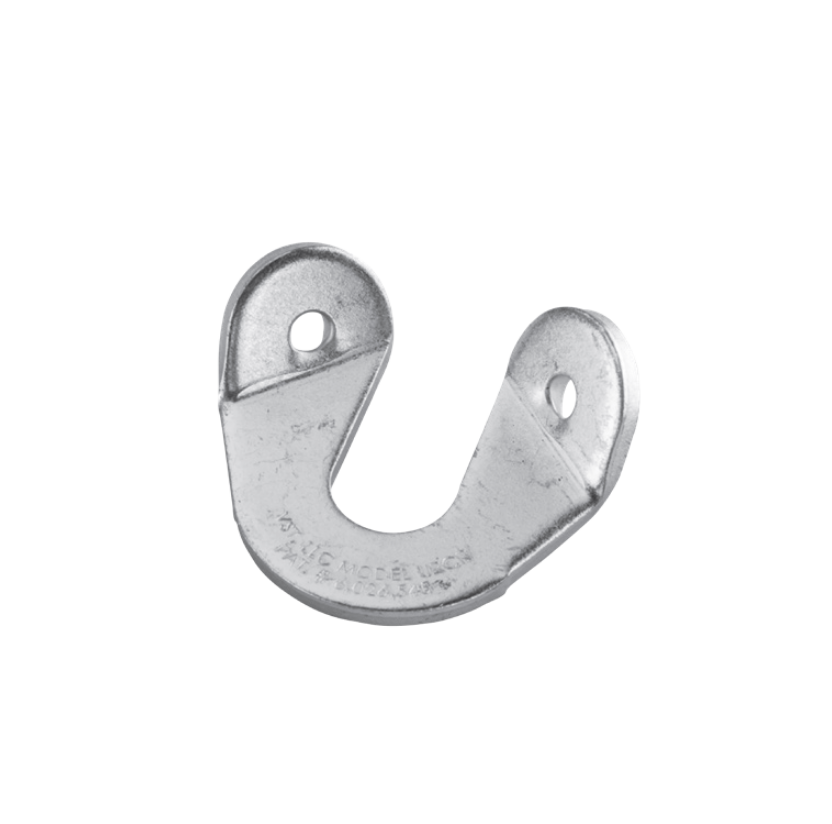

Universal-1
Universal-2
• Material : Steel
• Coating : Zinc Plated
• Approval : TÜV-ANSI ASHRAE 171

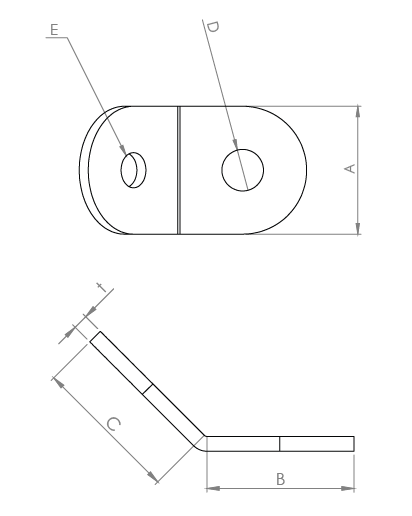

| Kod Code |
Açıklama Description |
A (mm) |
B (mm) |
C (mm) |
ØD (mm) |
E (mm) |
t (mm) | ||||
| 3400203008 | SBN 3 | 40 | 40 | 40 | 11 | 9 | 3,0 | ||||
| 3400204012 | SBN 4 | 40 | 40 | 40 | 13 | 11 | 4,0 | ||||
| 3400206016 | SBN 6 | 40 | 40 | 40 | 17 | 13 | 6,0 | ||||
| 3400214012 | SBR 4 | 45 | 50 | 60 | 13 | 11 | 4,0 | ||||
| 3400216016 | SBR 6 | 57 | 50 | 70 | 13 | 13 | 6,0 | ||||
