Seismic Bracing Clamp - DBC
Designed to protect the pipe from seismic effects.

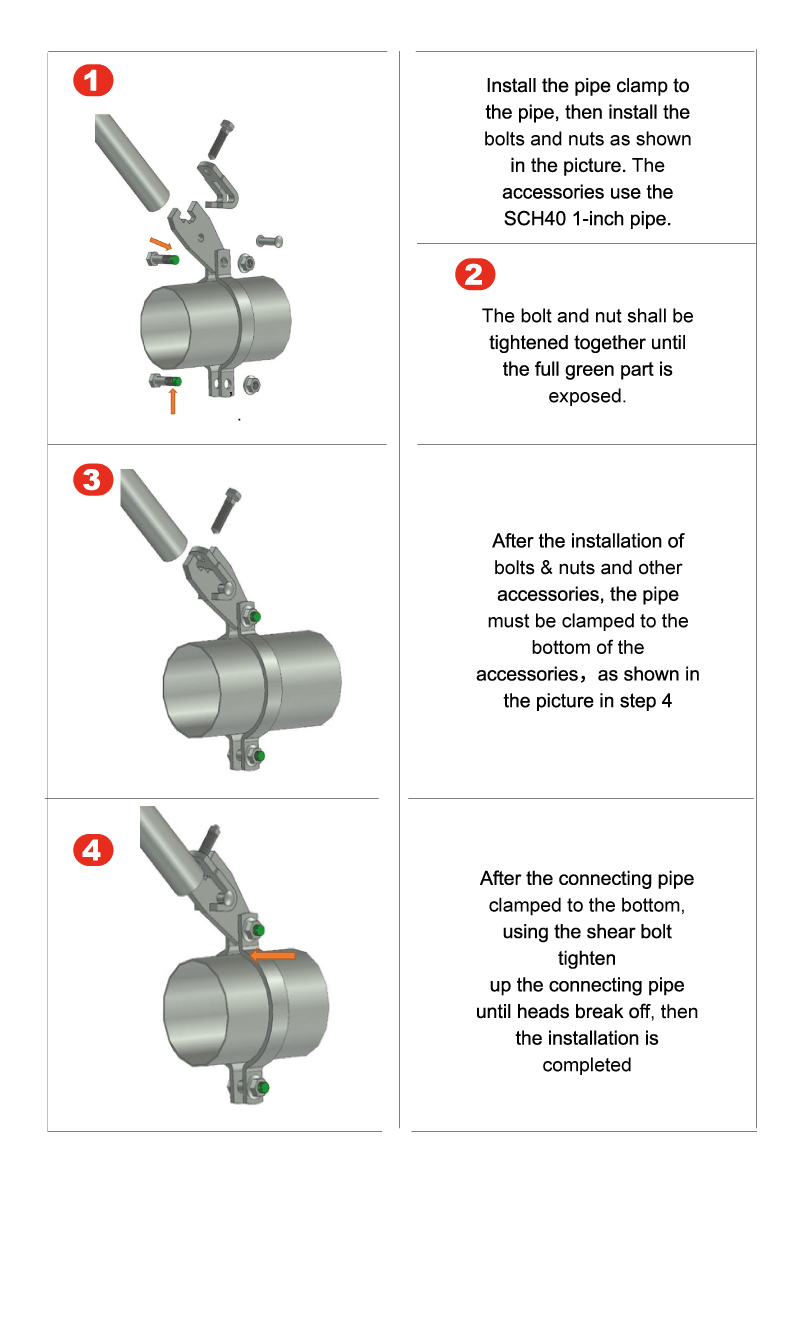

• Install the pipe clamp to the pipe, then install the bolts and nuts as the shown picture.
• The accessories of DBC use the sch40 1-inch pipe. The nuts torque of DBC need to reach 100~115 N•M to make all green marking lines visible in the bolts.
• After the installation of bolts & nuts and other accessories, the pipe must be clamped to the bottom of the accessories.
• Material : Steel
• Coating : Zİnc Plated
• Approval : FM Approved
• Brace Pipe : 1” (25), Sch 10, Sch 40, GB/T 3091, JIS G3454
• Size : Pipe size 2"(50) thru 8"(200)
• Designed to protect the pipe from seismic effects.
• The break-of bolt head allows seismic braces to be easily installed and inspected.
• Used together with the structural attachment fitting, which is the pipe connection component, and creates a strong assembly when
combined with the brace pipe.
• Must be installed in accordance with NFPA 13 standards and installation instructions.
FM Loads
Code |
|
A (mm) |
B (mm) |
Horizontal Load Installation Angle 30° - 44° lbs. kN |
Horizontal Load Installation Angle 45° - 59° lbs. kN |
Weight - wt.each lb. kg |
||||
| 37000DBC20 | 2" | 103,3 | 242,8 | 1070 | 4,75 | 1440 | 6,40 | 2,33 | 1,06 | |
| 37000DBC25 | 1/2" | 103,3 | 254,8 | 840 | 3,73 | 1120 | 4,98 | 2,42 | 1,10 | |
| 37000DBC30 | 3" | 103,3 | 272,8 | 1030 | 4,58 | 1560 | 6,93 | 2,55 | 1,16 | |
| 37000DBC40 | 4" | 103,3 | 297,8 | 650 | 2,89 | 890 | 3,95 | 2,73 | 1,24 | |
| 37000DBC60 | 6" | 110,8 | 352,8 | 830 | 3,69 | 1250 | 5,56 | 4,29 | 1,95 | |
| 37000DBC80 | 8" | 110,8 | 422,8 | 880 | 3,91 | 1150 | 5,11 | 4,93 | 2,24 | |
