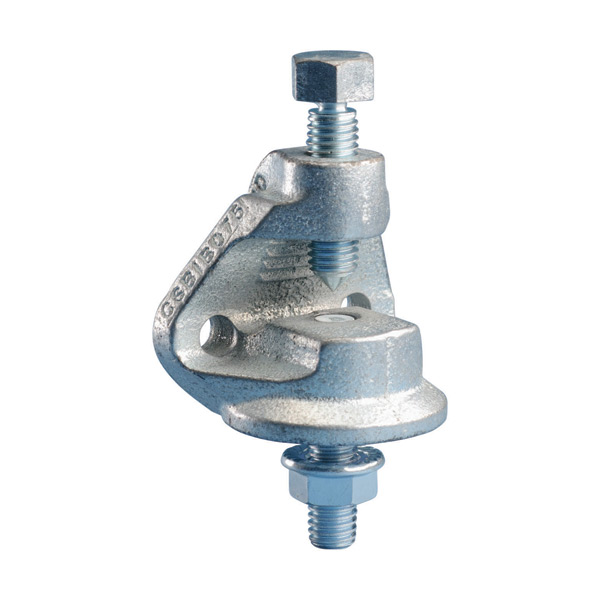

I-Beam Attachment
Meets NFPA®-13 requirements for seismic sway bracing.
Step 1: Place the I Beam Attachment around the beam
Step 2: Finger tighten nuts then bolts, next tighten all nuts and bolts until heads snap off.
Step 3: Install Universal Structural Attachment for attaching to brace pipe.
• Material : Steel
• Coating : Zinc Plated
• Approval : UL Listed and FM Approved
• Snap-off bolt head helps enable easy installation and inspection of seismic sway braces
• Meets NFPA®-13 requirements for seismic sway bracing

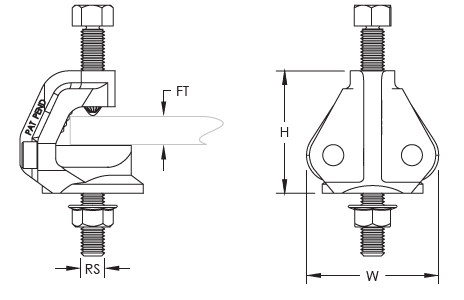

| Kod Code |
Flanş Kalınlığı Flange (FT) |
Rot Boyutu Rod Size (RS) |
H (mm) |
W (mm) |
| 3100404350 | 6,4 - 19,1 mm | 1/2" | 635 | 699 |
UL Load:
| Yapıya Göre Askının Yönü Brace Type |
Bağlantı Borusu Service Pipe Size |
Dayanım Rating |
| Paralel / Parallel | 1" - 4" | 5,340 N |
| Dikey / Perpendicular | 1" - 8" | 8,960 N |
FM Load:
| Askılama Yönü Brace Type |
Dikey Kurulum Açısı Başına Yatay Kapasite Horizontal Capacity per Installation Angle From Vertical |
|||
| 30° - 44° | 45° - 59° | 60° - 74° | 75° - 90° | |
| Paralel / Parallel | 7.210 N | 7.610 N | 4.490 N | 4.940 N |
| Dikey / Perpendicular | 5.290 N | 7.470 N | 5.160 N | 5.690 N |
