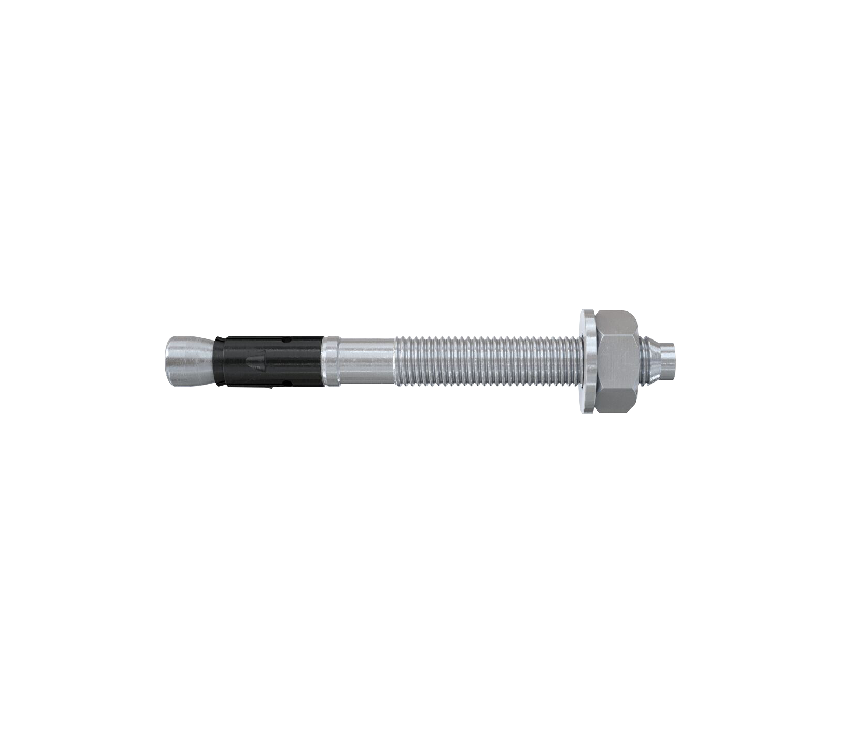

ETA and FM Approved Seismic Anchor

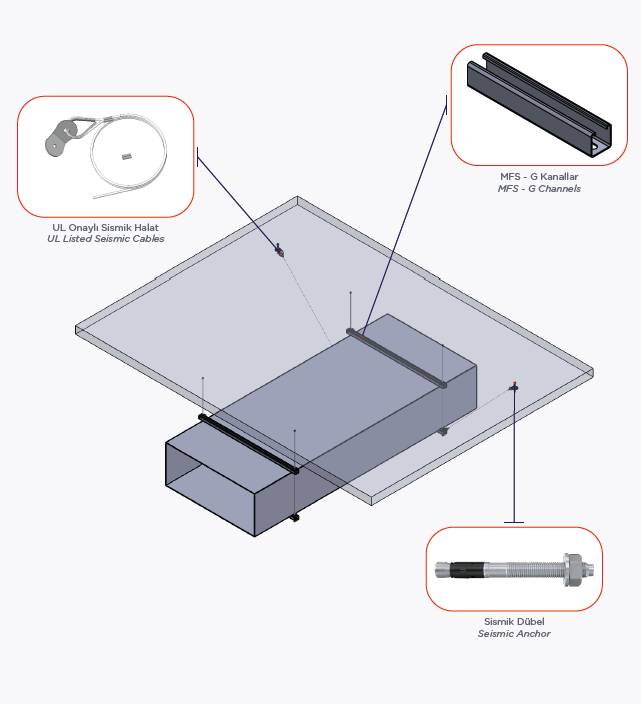

Used to fix seismic restraints to concrete. Fixing available for ETA C1 / C2 conditions.
M8
M10
M12
M16
M20

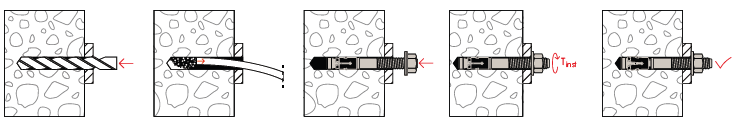

Step 1: Drill to the depth indicated in the catalog.
Step 2: Remove debris from the drilled area.
Step 3: Insert the seismic anchor into the hole.
Step 4: Bring the anchor to the desired depth with the mounting element and fix it.
Step 5: Tighten to the recommended torque value.
• Used to fix seismic restraints to concrete.
• Fixing available for ETA C1 / C2 conditions

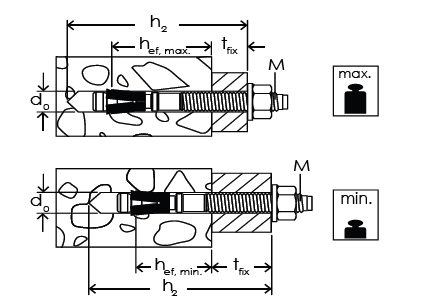

| Kod Code |
Ölçü Size (mm) |
Delme Çapı Drill Diameter d0 (mm) |
Max. Ankraj Derinliği Max. Anchoring Depth hef,max (mm) |
Min. Ankraj Derinliği Min. Anchoring Depth hef,max (mm) | Uygulama Tork Installation Torque Tinst (Nm) | ||
| 3501008075 | M8 x 75 | 8 | 45 | 35 | 20 | ||
| 3503010090 | M10 x 95 | 10 | 60 | 40 | 45 | ||
| 3503012110 | M12 x 110 | 12 | 70 | 50 | 60 | ||
| 3503016150 | M16 x 148 | 16 | 85 | 65 | 110 | ||
| 3503020170 | M20 x 172 | 20 | 100 | - | 200 | ||
