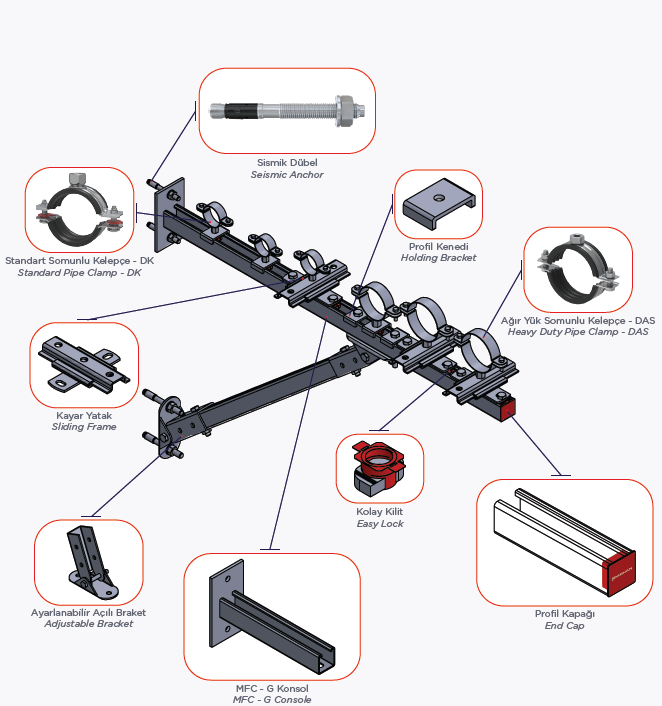

Sliding Frame
Single and double pipe clamp slide element for compensation axial expensions caused by temperature changes.
• Slide Guides can be mounted directly on wall, ceiling or floor.
• Easily mounted on the building structure in combination with strut channels.
• Different fasting options with M10, M12 and M16 hole dimensions.
• Supplied with pre-assembled fasteners if requested.
• Side brackets allows easy installation on both structural elements and MFS Strut Channels.
• Metal components: Steel,
• Coating Electro galvanised
• Inserts Polyamide with fibreglass backing (Tislamid®)
• Sliding Support Light Duty: 1.5 kN
• Sliding Support Medium Weight Service Type: 5.98 kN
• Sliding Support Heavy Duty: 20 kN
| Type | Pcs. | Product No |
| Light Duty Type | 25 | 2200127127 |
| Medium Weight Service Type | 25 | 2200127136 |
| Heavy Duty Type | 25 | 2200127136 |
Fixing elements are sold separately.
