Heavy-Duty Pipe Clamp - DAS
The heavy two-screw pipe clamp with connection nut.
• Secure fixing for large pipes with threaded rods or stud screws.
• Material : Steel, EPDM
• Coating : Electronic zinc plated
• Sound Ins. : For DIN 4109

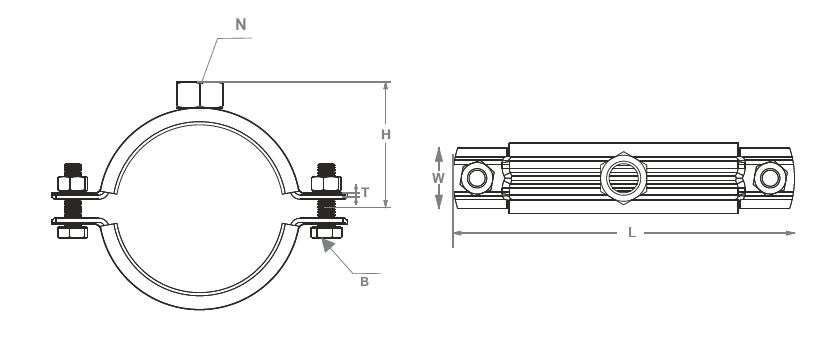

Kod Code |
Boyut Size |
Sıkma Aralığı (mm) Clamping Range (mm) | L (mm) |
H (mm) |
TxW (mm) | B | N | Max. Tavsiye Edilen Yük (kN) Max. Recom. Static load (kN) |
Kutu Adeti Box Qty | |
2305025000 | 2 ½" | 75-81 | 141 | 59,0 | 2,0x25 | M.8 | M.8 | 2,75 | 30 | |
2305030000 | 3" | 87-95 | 154 | 65,0 | 2,0x25 | M.8 | M.8 | 2,75 | 30 | |
2305040000 | 4" | 109-119 | 178 | 78,6 | 2,5x25 | M.8 | M.8 | 3,75 | 30 | |
2305050000 | 5" | 136-147 | 204 | 96,1 | 3,0x30 | M.10 | M.16 | 6,0 | 10 | |
2305060000 | 6" | 164-174 | 229 | 108,6 | 3,0x30 | M.10 | M.16 | 6,0 | 10 | |
2305080000 | 8" | 214-226 | 279 | 133,6 | 4,0x30 | M.10 | M.16 | 6,0 | 15 |
