U Flange DUF

U Flange DUF

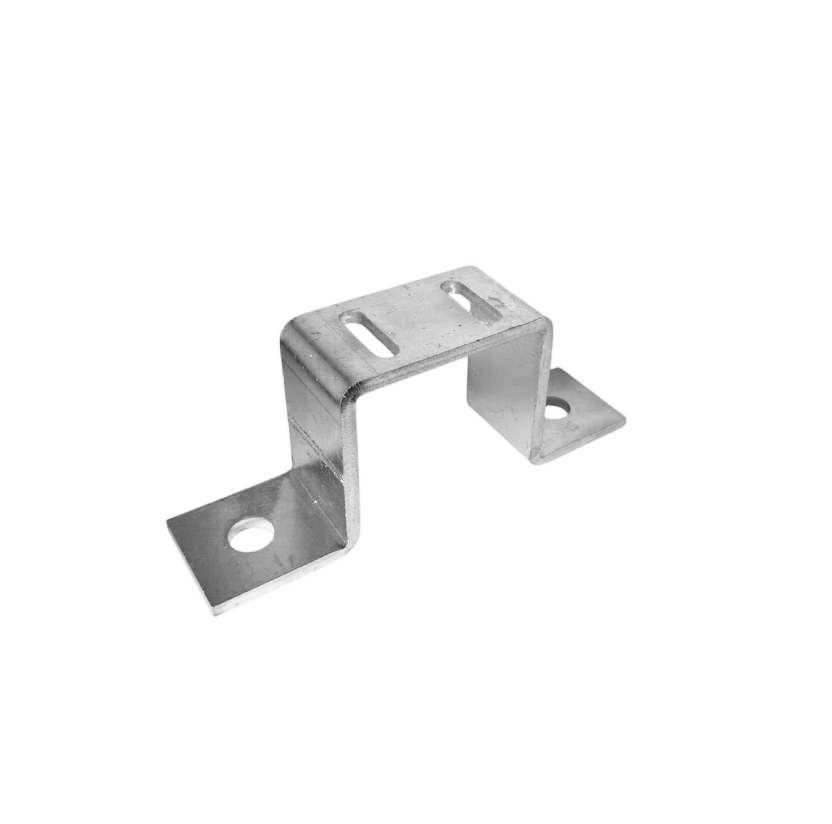

Simple bracket connection of ATL profiles to each other and to the substrate.

DUF 80

DUF 100

File Name Subject Link
DUF.80 Technic Drawing
DUF.80 Autocad
DUF.80 Solid-3D
DUF.80 IGS-3D
DUF.100 Technic Drawing
DUF.100 Autocad
DUF.100 Solid-3D
DUF.100 IGS-3D

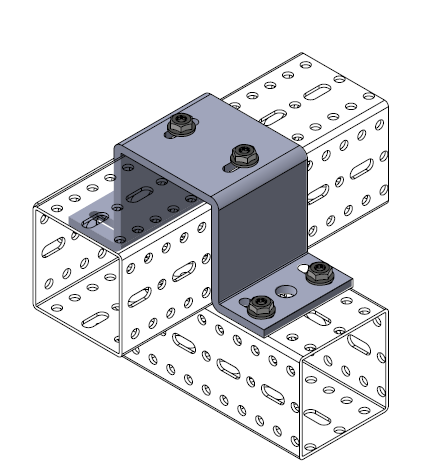

• Align the ATL profiles according to the working direction.

• Align the DUF connection bracket, which allows the ATL profiles to be mounted 90° to each other, with the ATL profile hole.

• Fasten to the profile with the self-forming MD bolt. Tightening and threading with the bolt must be completed after the flange touches the sheet metal.



• Material : Steel S235JR (material no. 1.0038) acc. to DIN EN 10025-2
• Galvanisation : Hot-dip galvanised, min. 75 μm, acc. to DIN EN ISO 1461

Kod
Code		 Açıklama

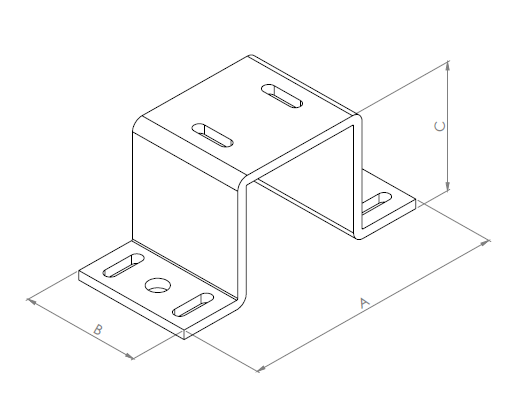

Description		 A (mm) B (mm) C (mm) t (mm) Ød (mm)
2200192950 DUF.80 200 80 86 6 10x30 / 17
2200113076 DUF.100 220 100 108 8 10x30 / 17
