Industrial Type Pipe Roller DRL2
Pipe roller with ATLAS profiles.

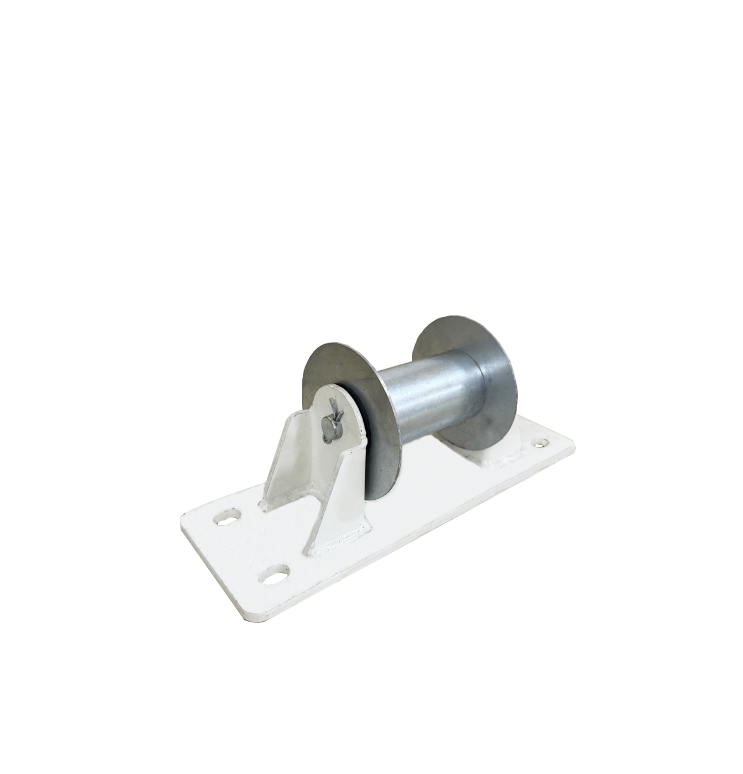

DRL-1

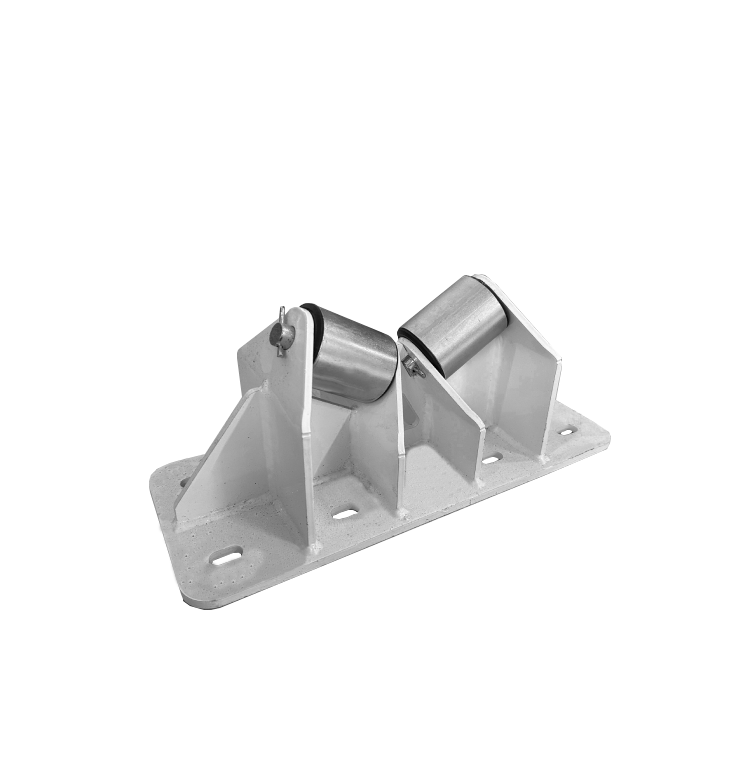

DRL-2
• Designed to direct the movement of the pipes due to thermal expansion.
Material : Steel S235JR (material no.1.0038) acc. to DIN EN 10025-2
Galvanisation : Hot-dip galvanised, min. 55 μm,acc. to DIN EN ISO 1461
| Kod Code |
Açıklama Description |
Boru Ölçüsü Pipe Size |

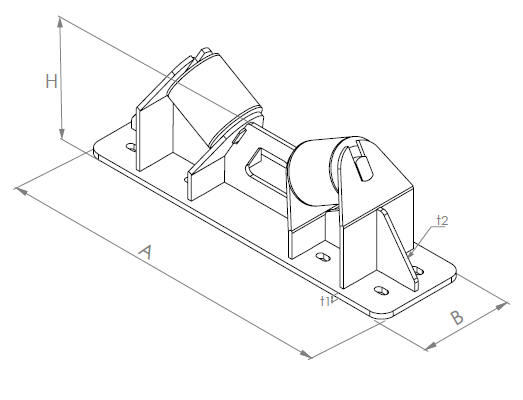

A (mm) | B (mm) | H (mm) | t1 (mm) | t2 (mm) | |
| 2217040000 | DRL1-40 | 1" - 1 1/2" | 265 | 100 | 90 | 6 | 4 | |
| 2217080000 | DRL1-80 | 2" - 3" | 290 | 100 | 90 | 6 | 4 | |
| 2217040050 | DRL2-125 | 4" - 5" | 345 | 140 | 100 | 6 | 4 | |
| 2217060080 | DRL2-200 | 6" - 8" | 468 | 140 | 115 | 8 | 6 | |
| 2217100140 | DRL2-350 | 10" - 14" | 505 | 140 | 115 | 8 | 6 | |
| 2217160200 | DRL2-500 | 16" - 20" | 610 | 140 | 115 | 10 | 8 | |
| 2217240300 | DRL2-750 | 24" - 30" | 761 | 140 | 120 | 10 | 10 | |
| 2217320380 | DRL2-950 | 32" - 38" | 861 | 140 | 115 | 12 | 10 | |
