Heavy Duty Profiles ATL
Eurocode3 and CE certified Atlas Heavy Duty Profiles are assembled on-site without welding thanks to self-forming screws and functional fittings.

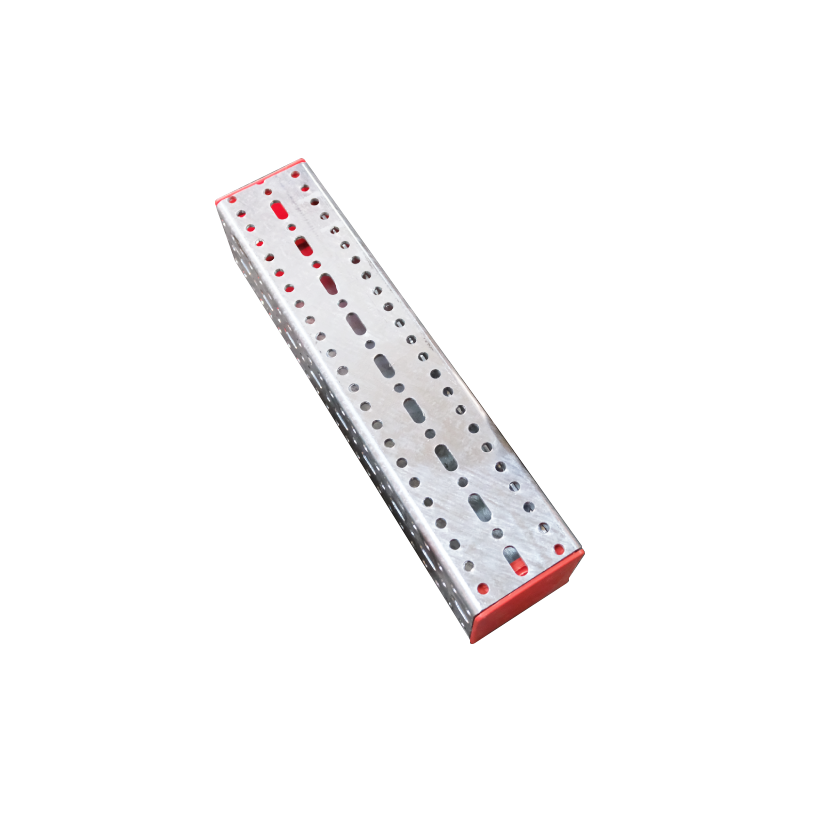

ATL 80.3
ATL 100.3
ATL 100.4
ATL 60.3
• Atlas Heavy Duty Beam Sections provide vibration-resistant connection by leaving zero gap between the fitting and the hole thanks to its special self-forming screws.
• Atlas Heavy Duty Beam Sections are assembled on site without the need for welding thanks to their self-forming screws and functional fittings. Thus, both manufacturing and application time is shortened.
• Atlas can be integrated with other Darhan system solutions thanks to its hole structure.
• The assembled fittings can be disassembled and reused thanks to the screws.
• Material : Steel S235JR (material no.1.0038) acc. to DIN EN 10025-2
• Galvanisation : Hot-dip galvanised, min. 75 μm, acc. to DIN EN ISO 1461
• Cross Section Dimension:
ATL 60.3: 60x60x3
ATL 80.3: 80x80x3
ATL 100.3: 100x100x3
ATL 100.4: 100x100x4
| Kod Code |
Açıklama Description |
B (mm) | H (mm) | s (mm) | Ağırlık Weight (kg/m) |
Uzunluk Length (mm) |
| 2200193001 | ATL 60-3,0 | 60 | 60 | 3 | 4,94 | 6000 |
| 2200192539 | ATL 80-3,0 | 80 | 80 | 3 | 6,1 | 6.000 |
| 2200112904 | ATL 100-3,0 | 100 | 100 | 3 | 7,4 | 6.000 |
| 2200112903 | ATL 100-4,0 | 100 | 100 | 4 | 9,6 | 6.000 |
Section Properites
| Açıklama Description |
Kesit Alanı Cross Section Area (mm2) | Burulma Modülü Torsion Section of Inertia (cm3) | Atalet Burulma Momenti Torsion Moment of Inertia (cm4) | Kesit Atalet Momenti Moment of Inertia Iy (cm4) |
Kesit Atalet Momenti Moment of Inertia Iz (cm4) |
Kesit Mukavemet Momenti Section Modules Wy (cm3) | Kesit Mukavemet Momenti Section Modules Wz (cm3) |
| ATL 60-3,0 | 576 | 20,34 | 62,54 | 31,27 | 31,27 | 10,42 | 10,42 |
| ATL 80-3,0 | 510 | 35,6 | 108,95 | 54,6 | 54,6 | 13,8 | 13,8 |
| ATL 100-3,0 | 802 | 56,5 | 252,78 | 126,39 | 126,39 | 25,28 | 25,28 |
| ATL 100-4,0 | 1053 | 73,68 | 324,61 | 162,31 | 162,31 | 32,46 | 32,46 |
The section properties is determined according to the perforated sections.
Advantages:
- Vibration-resistant connection with self-forming MD Bolt
Atlas Heavy Duty Beam Sections provide vibration-resistant connection by leaving zero gap between the fitting and the hole thanks to its special self-forming screws.
- Strong Structure
Atlas Heavy Duty Beam Sections made of first class steel material are lighter than other heavy load box profiles despite their strong structure.
- Fast assembly
Atlas Heavy Duty Beam Sections are assembled on site without welding thanks to self-forming screws and functional fittings. Thus, both manufacturing and application time is shortened.
- Disassemblable feature
The assembled fittings can be disassembled and reused thanks to the screws.
- Compatible with other Darhan product groups
Due to its Atlas hole structure, it can be integrated with other Darhan system solutions.

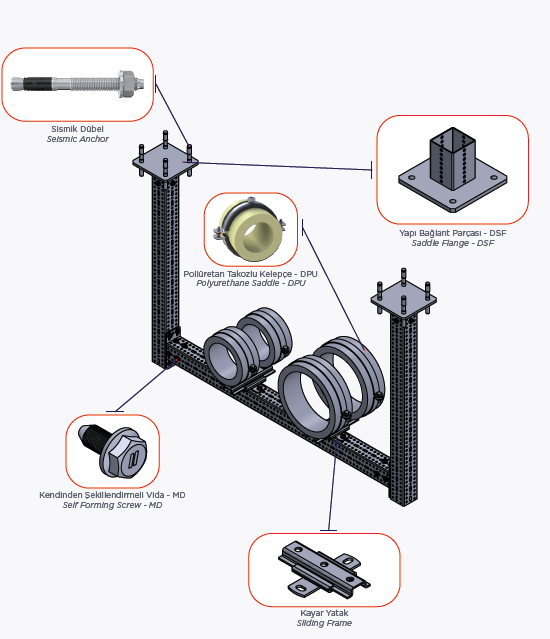

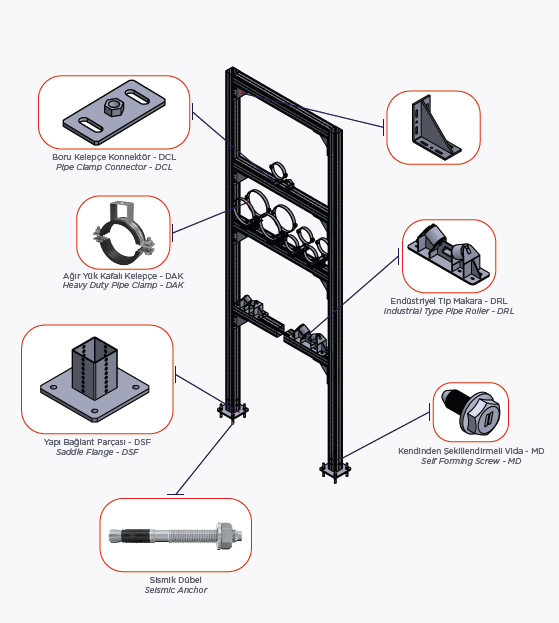

• Application:
• Energy : Power plants, Oil & Gas (offshore and onshore), Mining
• Infrastructure : Airports, train, metro hospitals, water treatment, water supply
• Industry : Chemical/Pharmaceutical, Automotive, Machinery
Watch the installation video to see how it’s done.
