G Channel Adaptor DAG

G Channel Adaptor DAG

The application-oriented connection of ATL profiles to G Channels.

DAG 80

DAG 100

File Name Subject Link
DAG.80 Technic Drawing
DAG.80 Autocad
DAG.80 Solid-3D
DAG.80 IGS-3D
DAG.100 Technic Drawing
DAG.100 Autocad
DAG.100 Solid-3D
DAG.100 IGS-3D

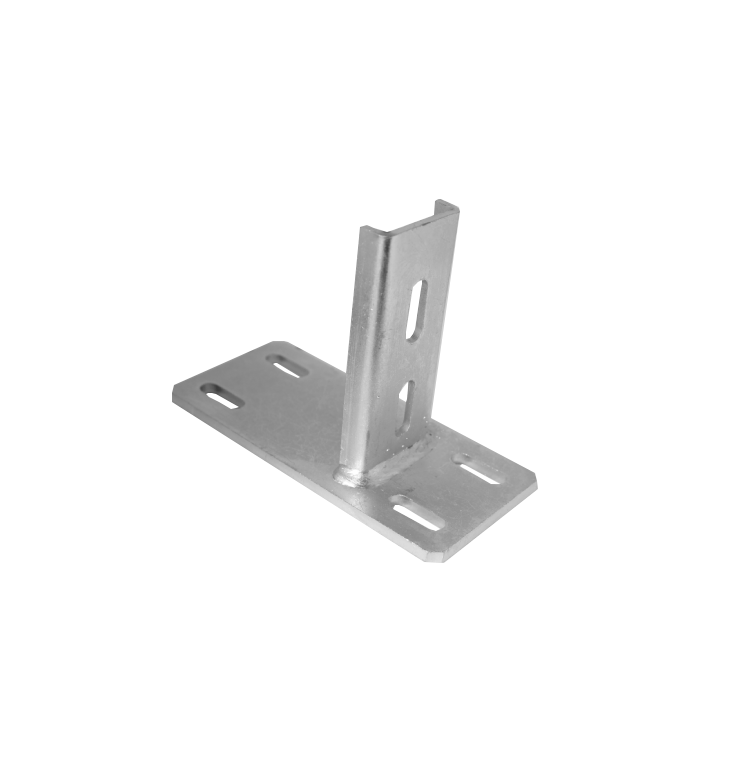

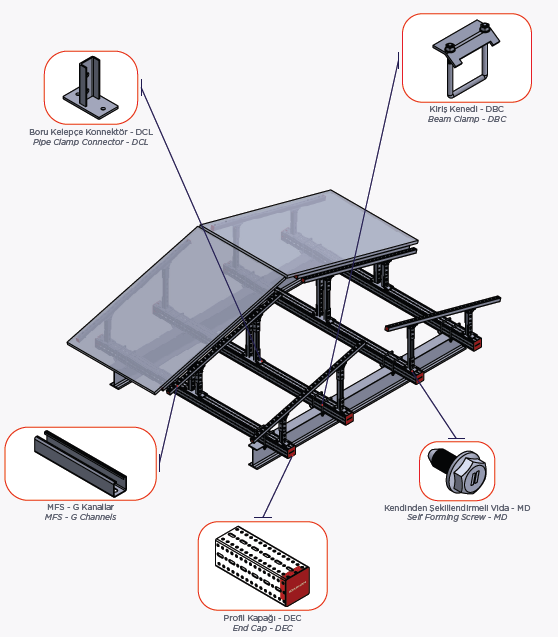

• Adapter for the optimum connection of ATL profiles and G-channels.

• Select the appropriate adapter according to the cross-sectional dimension of the ATL profile (80 or 100).

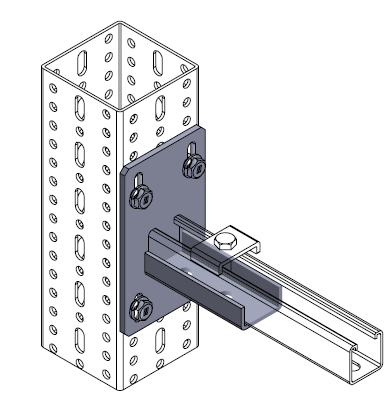

• Align the adapter to the ATL profile holes.

• Secure the adapter to the ATL profile with the self-forming MD bolt. Tightening and tapping with the bolt should be finished after the flange touches the sheet metal.

• Use Darhan guide bracket for channel opening.



Material : Steel S235JR (material no. 1.0038) acc. to DIN EN 10025-2
Galvanisation : Hot-dip galvanised, min. 55 μm, acc. to DIN EN ISO 1461

Kod
Code		 Açıklama

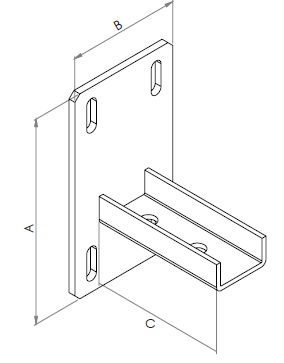

Description		 A (mm) B (mm) C (mm) t (mm) Uygun G Kanal
Suitable G Channel
2200192887 DAG.80 180 80 120 6 MFS 21,41, 62
2200113815 DAG.100 200 100 120 8 MFS 21,41, 62
