Angle Fitting DF2

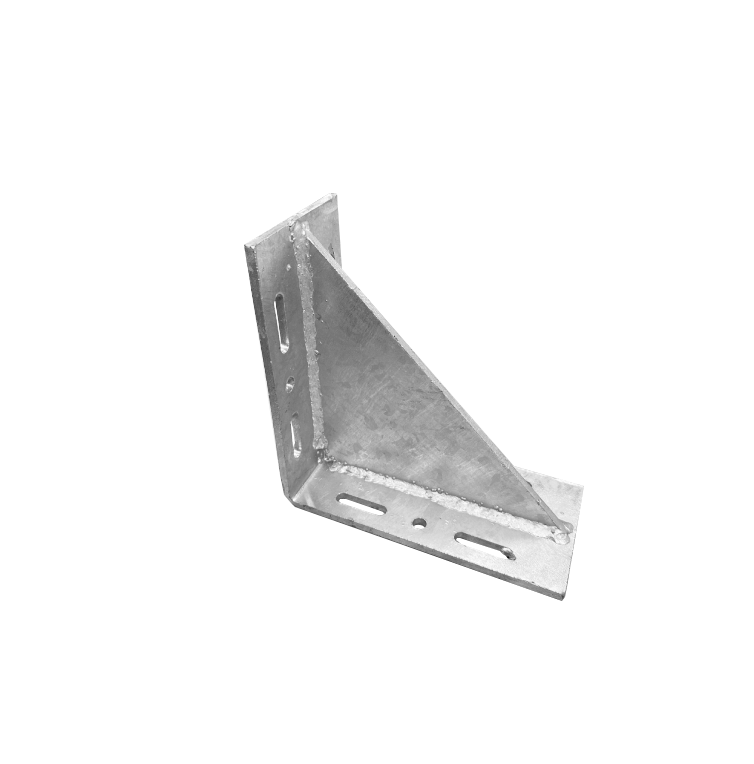

Angle Fitting DF2

The application-oriented connection of ATL massive profiles with each other.

DF2.80

DF2.100

File Name Subject Link
DF2.80 Technic Drawing
DF2.80 Autocad
DF2.80 Solid-3D
DF2.80 IGS-3D
DF2.100 Technic Drawing
DF2.100 Autocad
DF2.100 Solid-3D
DF2.100 IGS-3D

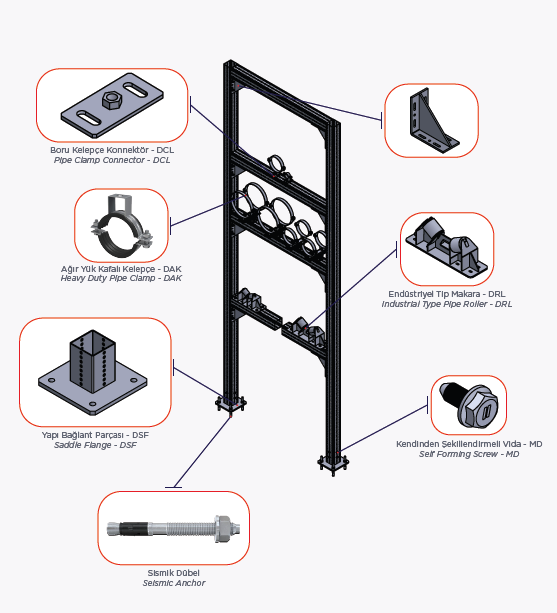

• Align the ATL Profiles.

• Insert the DF2 Angle Fitting into the joint of the ATL profiles and align the holes.

• Secure to the profile with a self-forming MD bolt. Tightening and threading with the bolt should be finished after the flange touches the sheet.



• Material : Steel S235JR (material no. 1.0038) acc. to DIN EN 10025-2
• Galvanisation : Hot-dip galvanised, min. 75 μm, acc. to DIN EN ISO 1461

Kod
Code		 Açıklama
Description		 A (mm) B (mm) C (mm) t (mm) Ød (mm)
2200192854 DF1.80 80 75 150 6 10x40
2200113083 DF1.100 100 75 150 8 10x40
2200192855 DF2.80 80 150 150 6 10x40
2200113078 DF2.100 100 200 200 8 10x40
