HEAVY DUTY PROFILE SYSTEMS

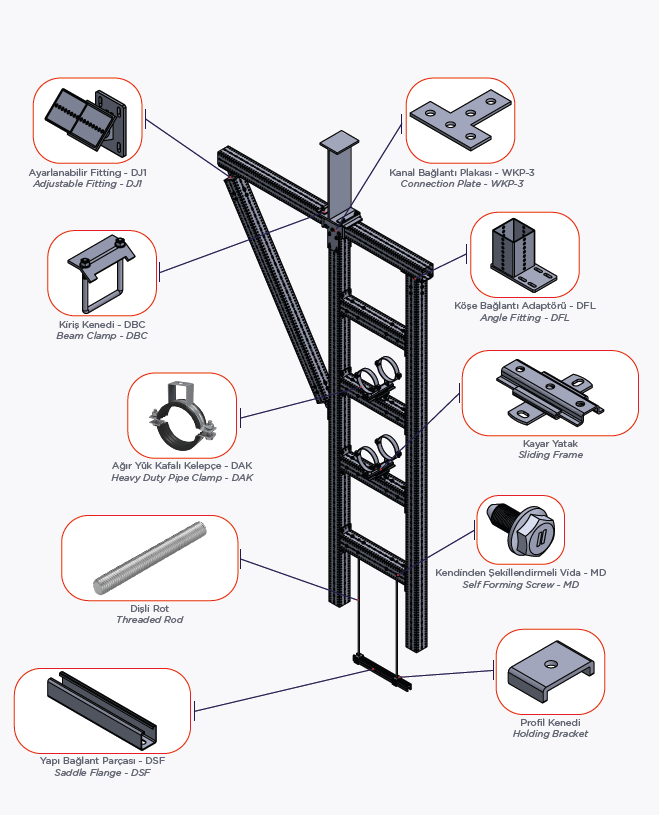

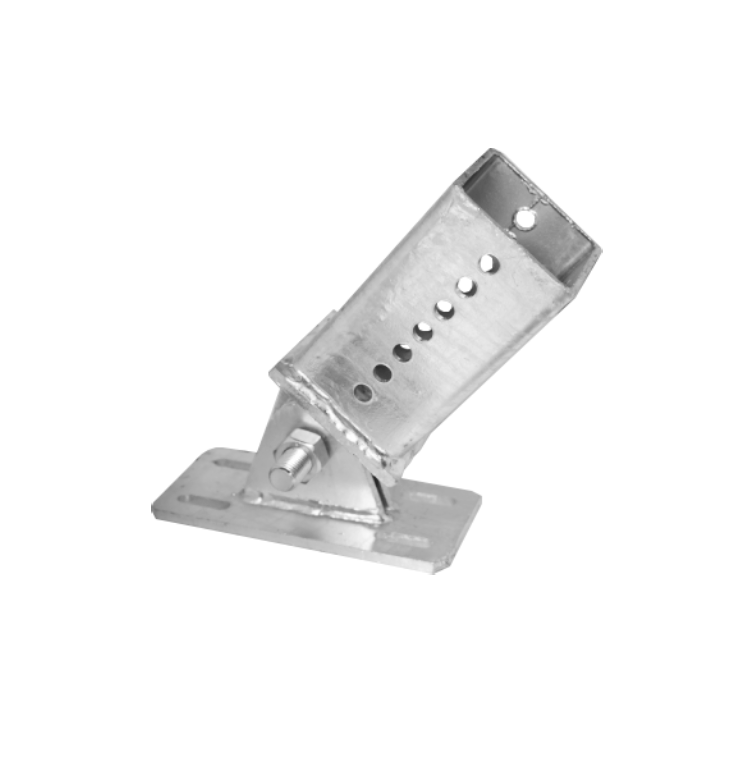

Adjustable Fitting DJ1

Variable connection of ATL profiles to each other and to the substrate.

DJ1

DJ2

• Adjustable fittings are used to support the profile construction with a structure that allows installation at different angles.

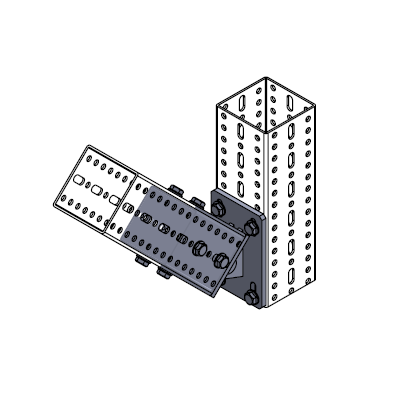

• Fix the DJ1 or DJ2 Adjustable Fitting according to the profile into the ATL profile and align the holes.

• Adjust the angle of the Adjustable Fitting.

• Fix to the profile(s) with the self-forming MD bolt. Tightening and threading with the bolt should be finished after the flange touches the sheet.

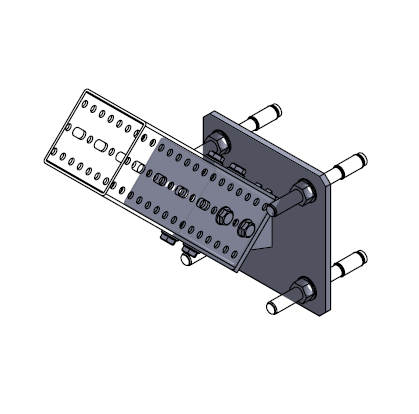

• Use dowels for wall mounting.

DJ1 - DJ2

Material : Steel S235JR (material no.1.0038) acc. to DIN EN 10025-2
Material screw : Steel grade 8.8

Galvanisation : Hot-dip galvanised, min. 75 μm,acc. to DIN EN ISO 1461

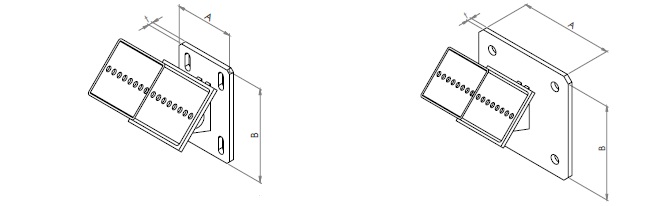

DJ1 DJ2
