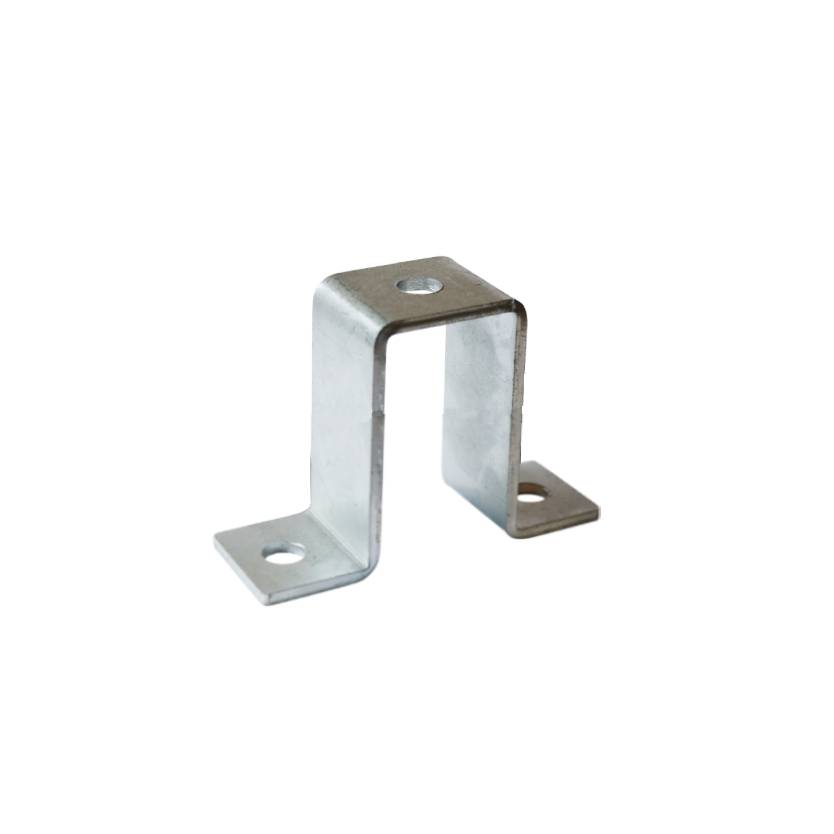

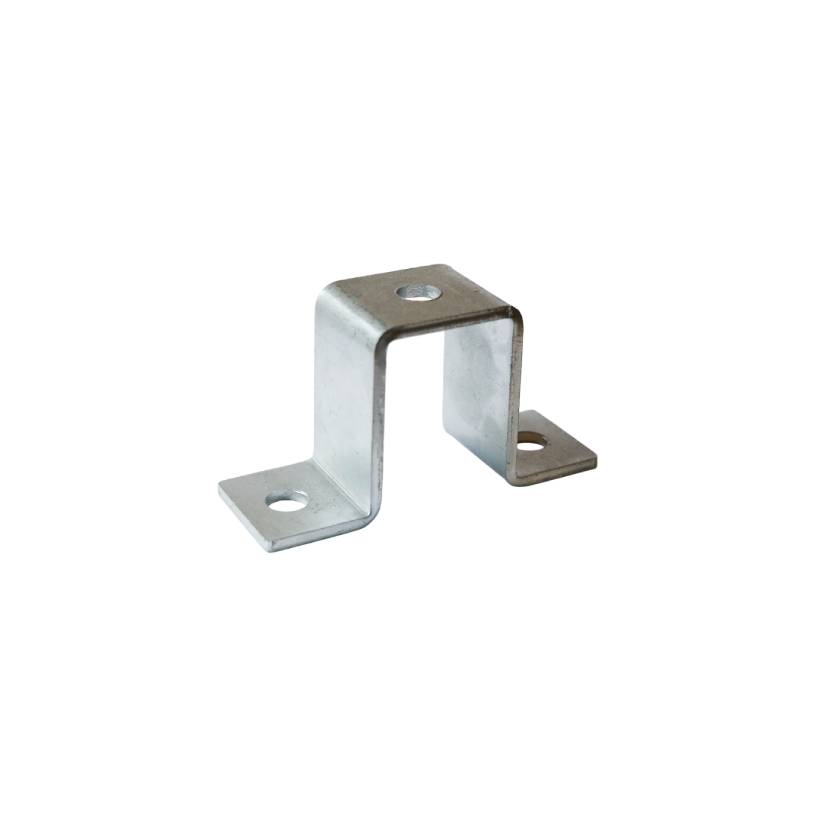

U Type Channel Bracket
Suitable for MFS Strut Channels for cross mounting onto the walls and frame structures. Improves the bending resistant of wall mounted channels. Provides easy and secure connections.
25 mm
45 mm
66 mm
86 mm
| File Name | Subject | Link |
|---|---|---|
| 41x21 | Teknik Çizim | |
| 41x21 | Autocad | |
| 41x21 | Solid-3D | |
| 41x21 | IGS-3D | |
| 41x41, 41x21 D | Teknik Çizim | |
| 41x41, 41x21 D | Autocad | |
| 41x41, 41x21 D | Solid-3D | |
| 41x41, 41x21 D | IGS-3D | |
| 41x41 D | Teknik Çizim | |
| 41x41 D | Autocad | |
| 41x41 D | Solid-3D | |
| 41x41 D | IGS-3D | |
| 41x62 | Teknik Çizim | |
| 41x62 | Autocad | |
| 41x62 | Solid-3D | |
| 41x62 | IGS-3D |

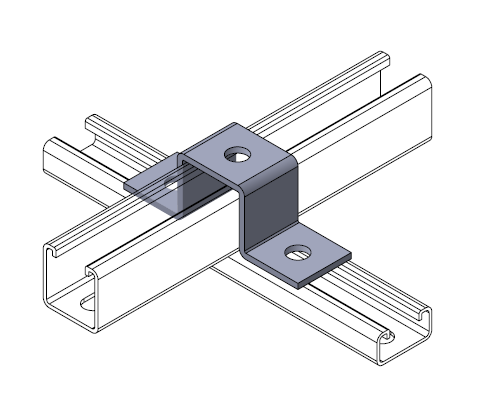

• Can be mounted on walls and ceilings combined with all MFS Strut Channels.
• Different sizes of strut channels can be combined by using MFS Channel Brackets.
• For easy and secure connection, use MFS Quick Nuts.
• Material : Steel S235JR
• Coating : Zinc plated, hot-dip galvanised
| Kod Code |
Kanal Ölçüsü Channel Size |

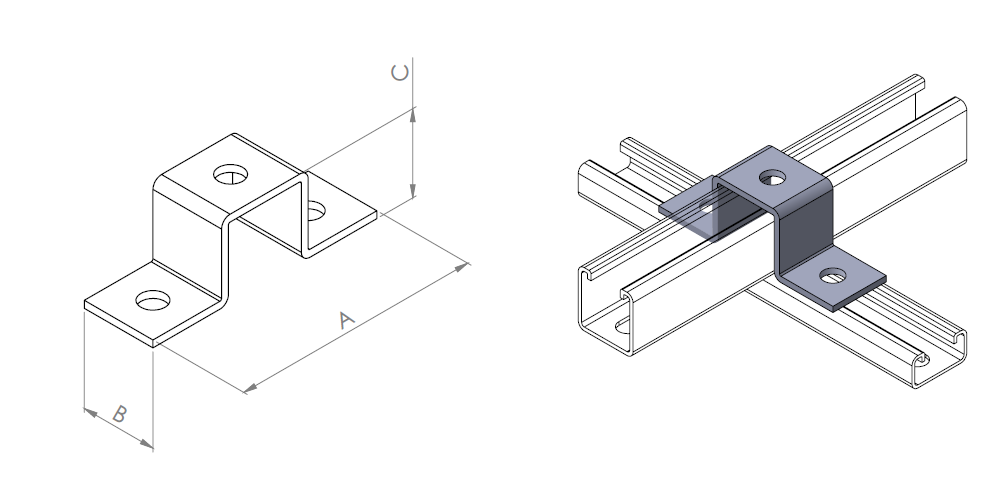

A (mm) | B (mm) | C (mm) | t (mm) | Ød (mm) |
| 2200177338 | 41x21 | 130,5 | 41 | 25 | 4 | 14 |
| 2200126791 | 41x41, 41x21 D | 130,5 | 41 | 45 | 4 | 14 |
| 2200126793 | 41x41 D | 130,5 | 41 | 86 | 4 | 14 |
| 2200126794 | 41x62 | 130,5 | 41 | 66 | 4 | 14 |
• Suitable for MFS Strut Channels for cross mounting onto the walls and frame structures.
