MFS Strut Channel Connector
Secure connection of strut channels with precise alignment ın case of a need for extension.

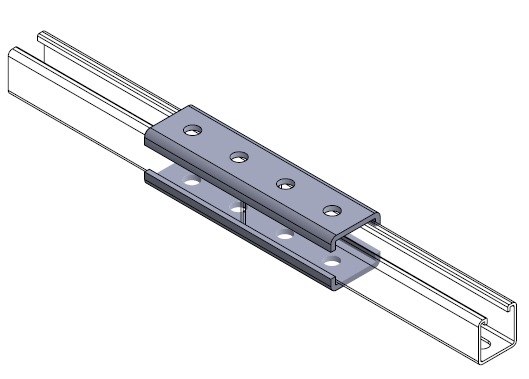

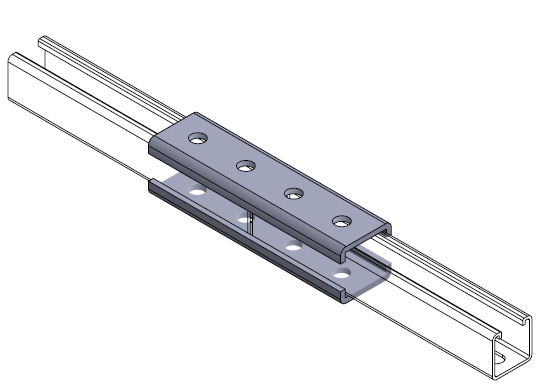

• Place the end of the channels into the slots of MFS Strut Channel Connector and secure the connection by using MFS Clamp Brackets.
• Use washers to maintain good load distribution.
• Material: Steel S235JR
• Coating: Zinc plated, hot-dip galvanised
• Provides strong connection of the channels combined with MFS Clamp Brackets and bolts.
• Folded sides enables to connect two channels robustly.

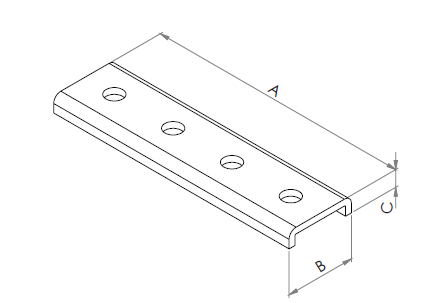

| Kod / Code | A (mm) | B (mm) | C (mm) | Ød (mm) |
| 2217080041 | 168 | 52 | 21 | 14 |
• Secure connection of channels with precise alignment ın case of a need for extension.
