MFS Angle Brackets

MFS Angle Brackets

Efficient way for the construction of cross-beams and frame structures with Darhan support channels.

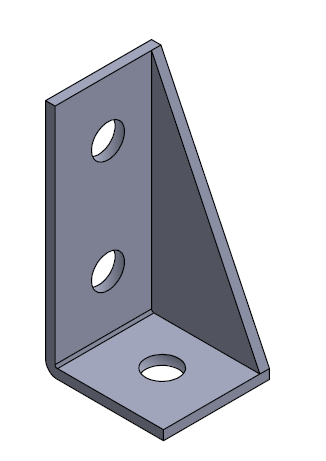

WKR-3

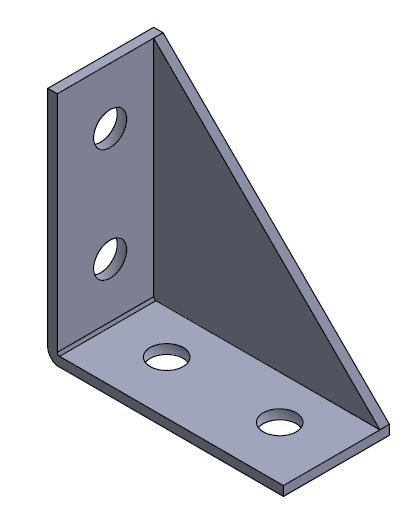

WKR-4

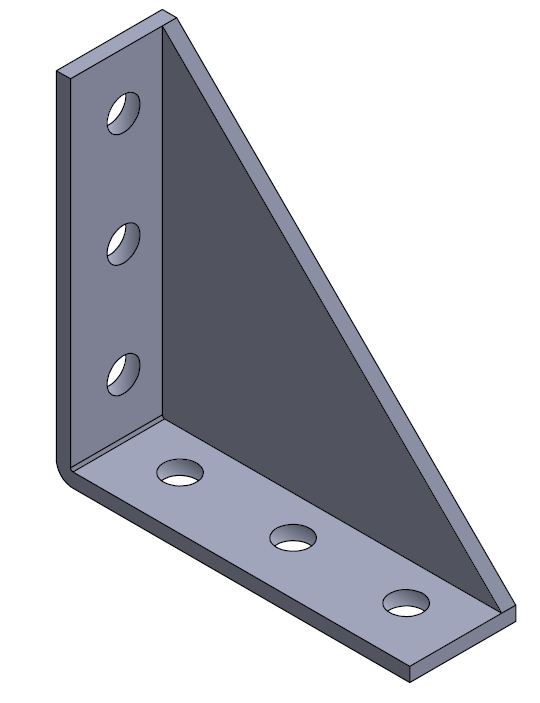

WKR-6

File Name Subject Link
WK-2 Teknik Çizim
WK-2 Autocad
WK-2 Solid-3D
WK-2 IGS-3D
WK-3 Teknik Çizim
WK-3 Autocad
WK-3 Solid-3D
WK-3 IGS-3D
WK-4 Teknik Çizim
WK-4 Autocad
WK-4 Solid-3D
WK-4 IGS-3D

• MFS Cantilever Brackets are compatible with all sizes of MFS Strut Channels, allowing the construction of different frames.

• Depending on the load to be supported different length of edges.

Material: Steel S235JR,

Coating: Cold formed steel 1.0332, electro galvanised (indoor use) or hot dipped galvanised (outdoor use)

Might be used individually to support pipes in a combination with a U-Bolt hanger.

Increases the load capacity of frame structures and trapezes build with Darhan Strut Channels.



Kod
Code 		 Açıklama
Description
A (mm)
B (mm)
C (mm)
t (mm)
Ød (mm)
2200145623 WK-2 45 50 50 4 14
2200155512 WK-3 45 50 100 4 14
2200114936 WK-4 45 100 100 5 14
2200145625 WKR-3 45 50 yoo 4 14
2200145626 WKR-4 45 100 10o 4 14
2200155513 WKR-6 45 150 150 6 14



• Might be used individually to support pipes in a combination with a U-Bolt hanger.



Watch the installation video to see how it’s done.
